Plate Beveling - ZM Series
ZM-60 Series Plate Beveling Machine
The ZM Series self-propelled plate beveling machine is designed for welding preparation on carbon steel, stainless steel, alloy steel and other metal plates. It can be used for plate edge beveling, edge chamfering, weld preparation and bevel forming.

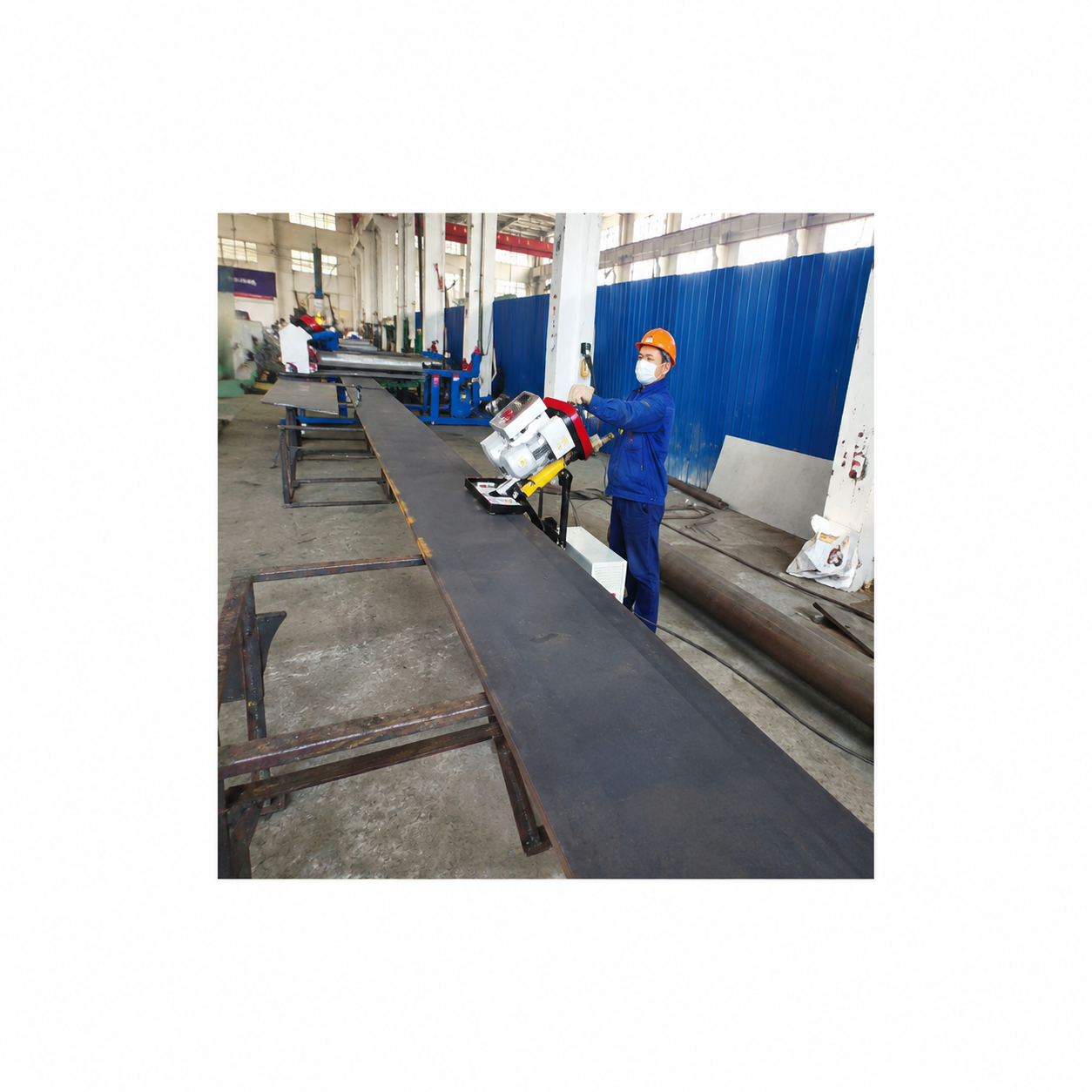

With a self-propelled working mode, the machine can move continuously along the plate edge, making it suitable for long plates and batch processing. Compared with manual grinding, it helps improve processing efficiency, bevel consistency and welding preparation quality.
This series is widely used in steel fabrication, pressure vessel manufacturing, shipbuilding, heavy equipment manufacturing and metal processing workshops.
Suitable for welding preparation of metal plates. Used for edge beveling of carbon steel, stainless steel and alloy steel plates. Self-propelled operation improves continuous processing efficiency. The machine moves automatically along the plate edge, reducing manual grinding and repeated adjustment. Stable beveling performance and consistent bevel shape. The transmission structure and cutter disc design help achieve smooth and stable beveling results. Suitable for different plate processing conditions. Configurations can be selected according to plate thickness, material, bevel angle and working requirements.
Technical specifications (reference)
| Item | Description |
|---|---|
| Power Supply | AC 380V 50Hz |
| Cutting Power | 3000W |
| Travel Motor Power | 450W |
| Spindle Speed | 0–1050 r/min |
| Feed Speed | 0–1500 mm/min |
| Clamping Plate Thickness | 5–60 mm |
| Clamping Plate Width | ≥80 mm |
| Processing Plate Length | ≥300 mm |
| Bevel Angle | 0°–60° |
| Single-Pass Bevel Width | 0–15 mm（0°–20°） |
| Bevel Edge Width | 0–32 mm |
| Cutter Disc Diameter | Φ80 mm |
| Number of Inserts | 6 |
| Table Height | 790–870 mm |
| Machine Footprint | 530 × 670 mm |
| Net Weight | 245 kg |
| Gross Weight | 280 kg |
| Packing Size | 750 × 650 × 1250 mm |
The specific values shall be subject to the factory technical agreement and quotation sheet.
Typical applications
Steel structure welding preparation.
Pressure vessel and storage tank manufacturing.
Shipbuilding and offshore equipment fabrication.
Heavy equipment and engineering machinery manufacturing.
Batch processing in metal fabrication workshops.
