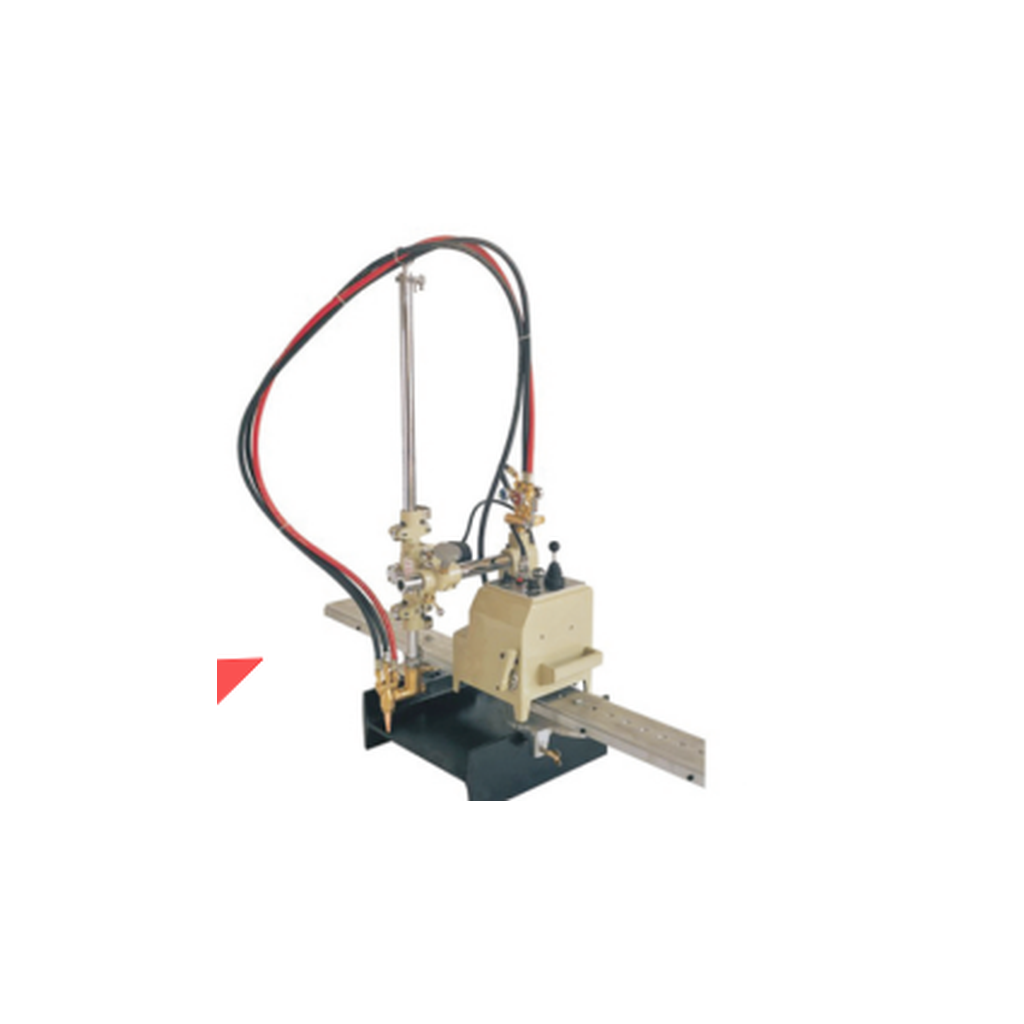

CG1-2 Series H-Beam Gas Cutting Machine
CG1-2 Series H-Beam Gas Cutting Machine
The CG1-2 series H-beam gas cutting machine is a semi-automatic flame cutting machine for steel structure fabrication and H-beam component cutting. It is mainly used for cutting the upper and lower flanges, web plate, end faces and related welded components of H-beams. The machine adopts a split combined structure and can be adjusted according to the H-beam section and cutting position. Compared with manual cutting, it helps improve cutting stability, cut consistency and on-site processing efficiency.
The machine mainly consists of a web cutting mechanism, flange cutting mechanism, control box, gas distributor and cutting torch. The web cutting mechanism is equipped with a reducer, motor and clutch device, allowing the cutting unit to run along the rail. The flange cutting mechanism is installed on one side of the web cutting mechanism and is supported on the flange surface by rollers, moving together with the mechanism to complete the cutting operation. The design is practical and convenient for inspection, maintenance and operation.
The CG1-2 series includes CG1-2 H type and CG1-2A H type. CG1-2 H type is suitable for regular H-beam cutting, with web cutting width of 150–800mm and flange cutting width of 150–400mm. CG1-2A H type is suitable for larger H-beams, with web cutting width of 150–1600mm and flange cutting width of 150–800mm. The equipment is widely used in steel structure fabrication, bridge component manufacturing, workshop steel beam processing, machinery manufacturing, engineering installation and maintenance cutting.
Suitable for flame cutting of H-beams, I-beams and steel structure components. Can cut H-beam webs, flanges and ends, suitable for steel structure blanking. Combined structure with web cutting mechanism, flange cutting mechanism, control box, gas distributor and cutting torch. Main body and shell are made of aluminum alloy, lightweight and convenient for movement and field use. The web cutting mechanism has a reducer, motor and clutch device, and can run stably along the rail. The flange cutting mechanism is installed on one side of the web cutting mechanism and moves along the flange surface with roller support. Cutting speed uses silicon-controlled speed regulation, convenient for adjustment according to plate thickness and flame condition. Different cutting nozzles can be selected for different cutting needs. Suitable for steel structure plants, bridge component factories, machinery manufacturing, engineering installation and on-site repair cutting.
Technical specifications (reference)
| Item | Description |
|---|---|
| Product Name | CG1-2 Series H-Beam Gas Cutting Machine |
| Product Category | H-beam gas cutting machine / semi-automatic H-beam cutting machine / steel structure flame cutting machine / section steel cutting equipment |
| Workpiece Type | H-beams, I-beams, steel structure beams, welded components, bridge components and workshop steel beams |
| Cutting Method | Oxygen-acetylene flame cutting / semi-automatic rail-guided cutting |
| Main Functions | Web cutting, flange cutting, end cutting and steel structure component blanking |
| Main Structure | Web cutting mechanism, flange cutting mechanism, control box, gas distributor and cutting torch |
| Speed Control | Silicon-controlled speed regulation |
| Input Power | AC220V ±10% |
| Cutting Speed | 50–750mm/min |
| Cutting Thickness | 6–60mm |
| Bevel Angle | 0°–30°, flange and web |
| Applicable Cutting Nozzles | G02 for acetylene; G03 for propane; one type can be selected according to demand |
| Motor Configuration | Web motor 110V 50Hz 30W, speed 3600r/min; flange motor 110V 50Hz 40W, speed 2200r/min |
| CG1-2 H Type | Weight 30kg; main unit size 250×176×260mm; rail unit size 224×114×1500mm; web cutting width 150–800mm; flange cutting width 150–400mm; maximum flange bevel angle 30°, maximum bevel length 300mm; maximum web bevel angle 35°, maximum bevel length 400mm |
| CG1-2A H Type | Weight 37.5kg; main unit size 400×340×440mm; rail unit size 270×220×2200mm; web cutting width 150–1600mm; flange cutting width 150–800mm; maximum flange bevel angle 30°, maximum bevel length 690mm; maximum web bevel angle 35°, maximum bevel length 1300mm |
| Typical Applications | H-beam cutting, steel structure beam cutting, bridge component cutting, workshop steel beam blanking, welded component prefabrication and on-site repair cutting |
The specific values shall be subject to the factory technical agreement and quotation sheet.
Typical applications
Web and flange cutting of H-beams in steel structure plants.
Blanking of bridge components, workshop steel beams and welded structural parts.
H-beam end cutting and bevel cutting.
Section steel component cutting in machinery manufacturing.
Engineering installation, steel structure repair and on-site flame cutting.
