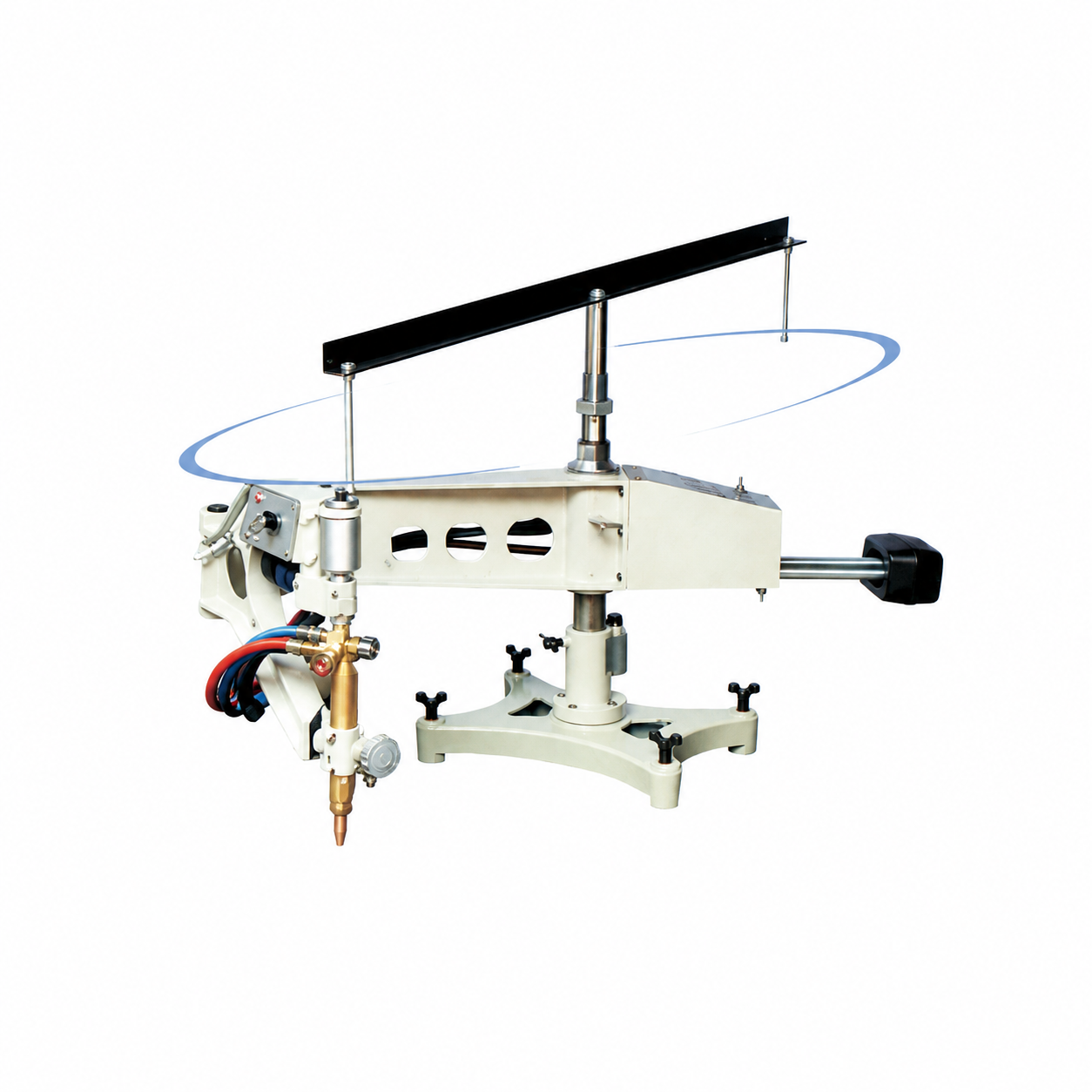

CG2 Series Semi-Automatic Circle Gas Cutting Machine
CG2 Series Semi-Automatic Circle Gas Cutting Machine
The CG2 series semi-automatic circle gas cutting machine is a flame cutting device specially designed for circular cutting of steel plates. It is mainly used for circular part cutting, round hole cutting, flange cutting and circular blanking of carbon steel plates. Through center positioning and circular torch movement, the machine can complete stable circular cutting. Compared with manual flame cutting, it helps improve dimensional consistency, cutting stability and working efficiency.
The machine adopts a die-cast aluminum alloy body, making the structure lightweight and convenient for workshop or on-site movement. The mechanical gear speed control system runs smoothly, allowing operators to adjust cutting speed according to plate thickness, hole diameter and flame condition. The adjustable aluminum alloy rollers on the base make movement and positioning more flexible. The gas rotary distribution design reduces hose twisting during circular cutting, making continuous operation smoother.
The CG2 series includes CG2-600, CG2-1000 and CG2-1000I, covering circular cutting ranges from φ30–600mm and φ30–1000mm. The machine can cut steel plates with thickness from 6–100mm, with cutting speed from 50–750mm/min. It is widely used in steel structure fabrication, flange manufacturing, machinery parts processing, pressure vessels, shipbuilding, metal workshops and on-site maintenance cutting.
Suitable for circular cutting, hole cutting, flange cutting and circular steel plate blanking. Aluminum alloy body structure, lightweight and easy to move. Mechanical gear speed control provides stable cutting speed adjustment. Stable operation, suitable for continuous circular cutting. Adjustable aluminum alloy rollers on the base make movement and positioning easier. Gas rotary distribution structure helps prevent hose twisting during circular cutting. Specially used for cutting circular parts, holes, flanges and disc-shaped workpieces. Export voltage can be customized, including 110V, 240V and 380V. Suitable for oxygen-acetylene flame cutting of carbon steel plates. Used in steel structures, machinery manufacturing, pressure vessels, shipbuilding and on-site repair cutting.
Technical specifications (reference)
| Item | Description |
|---|---|
| Product Name | CG2 Series Semi-Automatic Circle Gas Cutting Machine |
| Product Category | Circle cutting machine / semi-automatic circle cutter / flame circle cutting machine / round hole cutting machine / steel plate circular cutting equipment |
| Workpiece Type | Carbon steel plates, steel structure plates, machinery parts plates, flange plates, pressure vessel plates and shipbuilding steel plates |
| Cutting Method | Oxygen-acetylene flame cutting / semi-automatic circular cutting |
| Main Functions | Circular cutting, round hole cutting, flange cutting and circular part blanking |
| Speed Control | Mechanical gear speed control / stable speed adjustment |
| Applicable Gas | Oxygen, acetylene and other flame cutting gases |
| Applicable Material | Carbon steel plates |
| Custom Voltage | 110V, 240V, 380V and other export voltage options |
| CG2-600 | Order No. LH80007; machine size 750×300×700mm; input voltage AC220V/50Hz; cutting plate thickness 6–100mm; cutting speed 50–750mm/min; circular cutting diameter φ30–600mm; cutting accuracy <1mm; torch rotation speed 0.2–6.0r/min; machine weight 28kg |
| CG2-1000 | Order No. LH80008; machine size 980×340×700mm; input voltage AC220V/50Hz; cutting plate thickness 6–100mm; cutting speed 50–750mm/min; circular cutting diameter φ30–1000mm; cutting accuracy <1mm; torch rotation speed 0.2–6.0r/min; machine weight 50kg |
| CG2-1000I | Order No. LH80009; machine size 980×340×700mm; input voltage AC220V/50Hz; cutting plate thickness 6–100mm; cutting speed 50–750mm/min; circular cutting diameter φ30–1000mm; cutting accuracy <1mm; torch rotation speed 0.2–6.0r/min; machine weight 50kg |
| Typical Applications | Steel plate circular cutting, round hole cutting, flange cutting, disc blanking, machinery part cutting, steel structure fabrication and on-site repair cutting |
The specific values shall be subject to the factory technical agreement and quotation sheet.
Typical applications
Round hole cutting and circular blanking of steel plates.
Flame cutting of flanges, discs and ring-shaped parts.
Circular plate cutting in machinery manufacturing.
Circular cutting in pressure vessel, shipbuilding and steel structure fabrication.
Semi-automatic circular flame cutting in metal workshops and engineering sites.
