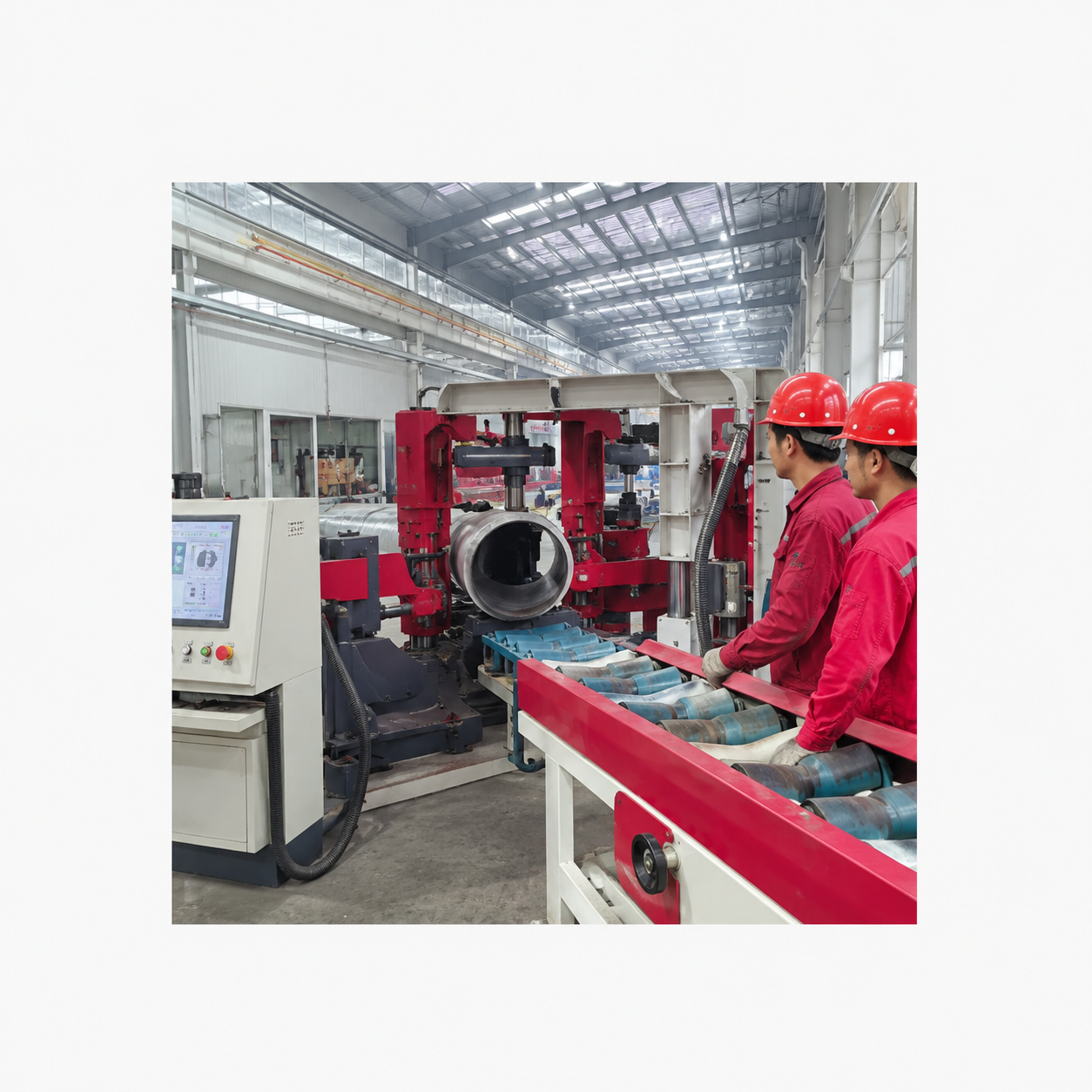

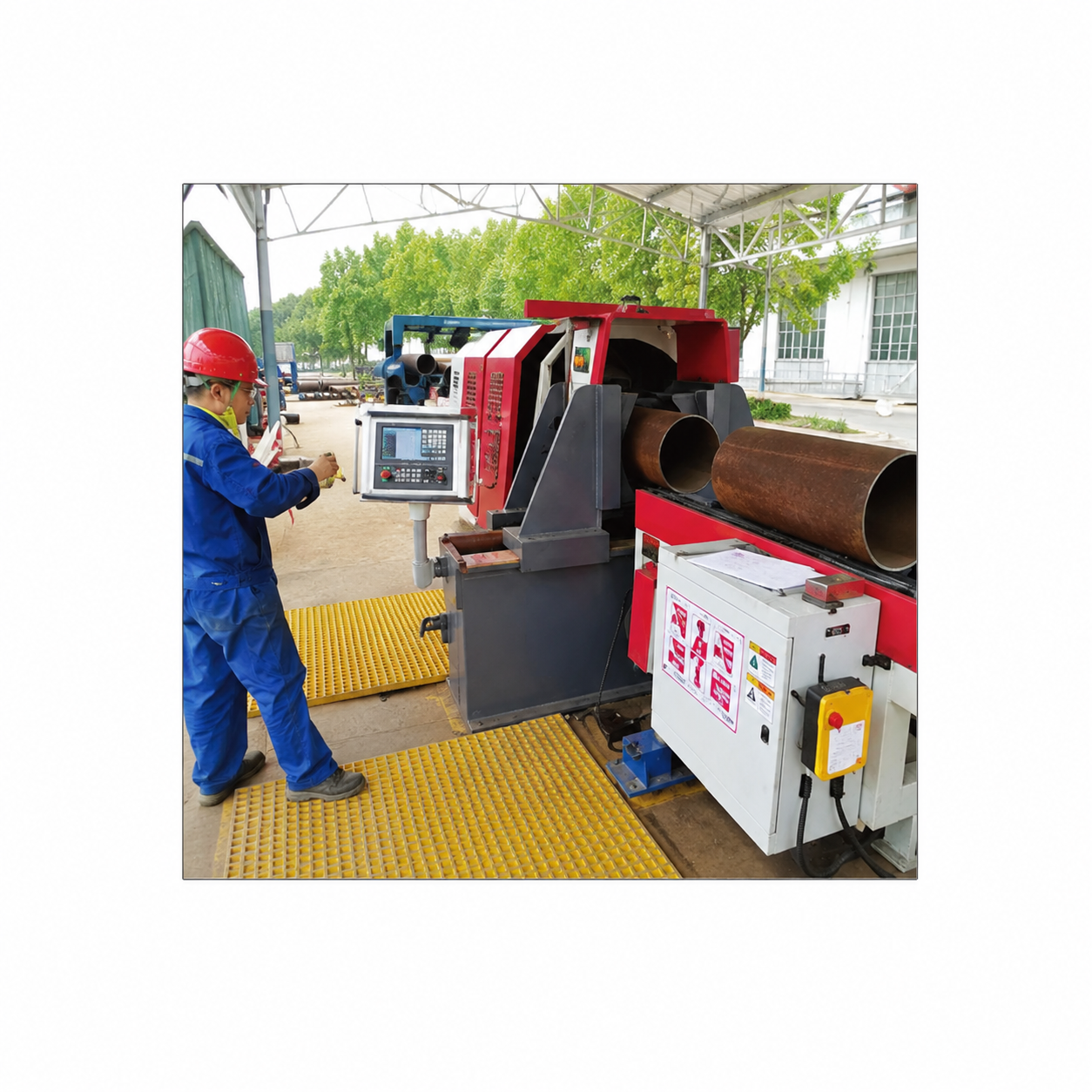

CNC Pipe End Facing and Beveling Machine
CNC Pipe End Facing and Beveling Machine
The CNC pipe end facing and beveling machine is a CNC pipe end processing system designed for thick-wall pipes and demanding welding preparation applications. It is mainly used for pipe end beveling, internal and external beveling, U-groove beveling, V-groove beveling, double V-groove beveling and compound beveling. With CNC control, the machine performs beveling while the workpiece remains stationary. The rotating cutter head works together with radial and axial tool feeding to complete high-precision pipe end machining.
The machine can process single V-type, double V-type, U-type and other bevel forms. It is especially suitable for thick-wall pipe ends that are difficult to process with ordinary pipe cutting machines. Through CNC program control, the machining path can be adjusted according to pipe diameter, wall thickness, bevel angle and welding procedure requirements, helping improve bevel consistency and pipe end quality.
The CNC pipe end facing and beveling machine is suitable for carbon steel, stainless steel, alloy steel and other pipe materials. It is widely used in petrochemical, natural gas, power, boiler, pressure vessel, nuclear power, shipbuilding, water treatment and large industrial pipe prefabrication projects. Compared with manual grinding or ordinary mechanical beveling, this machine improves thick-wall pipe beveling efficiency, reduces human error and improves pipe end preparation quality before welding.
CNC control system for high-precision pipe end beveling. The workpiece does not rotate; beveling is completed by cutter head rotation and tool feeding. Suitable for large-diameter pipes, thick-wall pipes and heavy-duty pipe end machining. Supports radial tool feeding and axial feeding for different pipe end processing requirements. Supports V-type, double V-type and U-type bevel forms. Suitable for thick-wall pipes, pressure pipelines, alloy steel pipes and stainless steel pipes. Hydraulic clamping structure provides stable pipe holding for heavy pipe processing. High efficiency, high accuracy and stable machining performance help reduce manual grinding and secondary finishing. Tooling and machining programs can be customized according to different bevel requirements. Suitable for pipe prefabrication plants, pressure vessel manufacturing, boiler manufacturing, power plant maintenance, petrochemical projects and large pipeline installation.
Technical specifications (reference)
| Item | Description |
|---|---|
| Product Name | CNC Pipe End Facing and Beveling Machine |
| Product Category | CNC pipe end beveling machine / CNC pipe end facing machine / thick-wall pipe beveling machine / pipe welding preparation equipment |
| Workpiece Type | Industrial pipes, thick-wall pipes, pressure pipelines, boiler pipes, petrochemical pipelines, natural gas pipelines and equipment pipe ends |
| Control Method | CNC control |
| Processing Method | Pipe end beveling, internal beveling, external beveling, compound beveling, U-groove beveling and V-groove beveling |
| Tool Feeding Method | Radial tool feeding, with axial feeding available according to process requirements |
| Workpiece Status | Workpiece remains stationary; cutter head rotates for machining |
| Clamping Method | Hydraulic clamping |
| Bevel Forms | V-type / double V-type / U-type |
| Applicable Materials | Carbon steel, stainless steel, alloy steel and other metal pipes |
| SDJ-400 | Pipe diameter range 30–426mm; wall thickness 4–40mm; main motor power 4KW; spindle and cutter head speed 67–123r/min; bevel angle 0°–37.5°; bevel forms V-type, double V-type, U-type; cutting width ≤8mm; hydraulic clamping; machine size 3100×2000×1550mm; weight 2500kg |
| SDJ-600 | Pipe diameter range 108–630mm; wall thickness 10–120mm; main motor power 7.5KW; spindle and cutter head speed 34–304r/min; bevel angle 0°–40°; bevel forms V-type, double V-type, U-type; cutting width ≤8mm; hydraulic clamping; machine size 250×2400×1750mm; weight 6000kg |
| SDJ-800 | Pipe diameter range 219–830mm; wall thickness 10–120mm; main motor power 7.5KW; spindle and cutter head speed 34–304r/min; bevel angle 0°–40°; bevel forms V-type, double V-type, U-type; cutting width ≤8mm; hydraulic clamping; machine size 310×3200×2400mm; weight 7000kg |
| SDJ-1000 | Pipe diameter range 219–1000mm; wall thickness 10–180mm; main motor power 11KW; spindle and cutter head speed 34–304r/min; bevel angle 0°–45°; bevel forms V-type, double V-type, U-type; cutting width ≤8mm; hydraulic clamping; machine size 250×3000×1750mm; weight 8000kg |
| SDJ-1200 | Pipe diameter range 400–1200mm; wall thickness ≤90mm; main motor power 11KW; spindle and cutter head speed 23–184r/min; bevel angle 0°–45°; bevel forms V-type, double V-type, U-type; hydraulic clamping; machine size 300×3200×2265mm; weight 11000kg |
| SDJ-1500 | Pipe diameter range 600–1500mm; wall thickness ≤90mm; main motor power 15KW; spindle and cutter head speed 23–184r/min; bevel angle 0°–45°; bevel forms V-type, double V-type, U-type; hydraulic clamping; machine size 300×3500×2265mm; weight 13000kg |
| Typical Applications | Thick-wall pipe end beveling, pressure pipeline beveling, U-groove beveling, boiler pipe processing and petrochemical pipe welding preparation |
The specific values shall be subject to the factory technical agreement and quotation sheet.
Typical applications
Pipe end beveling before welding for thick-wall pipes.
Internal and external beveling of pressure pipelines, boiler pipes and petrochemical pipelines.
U-groove, V-groove, double V-groove and compound bevel processing.

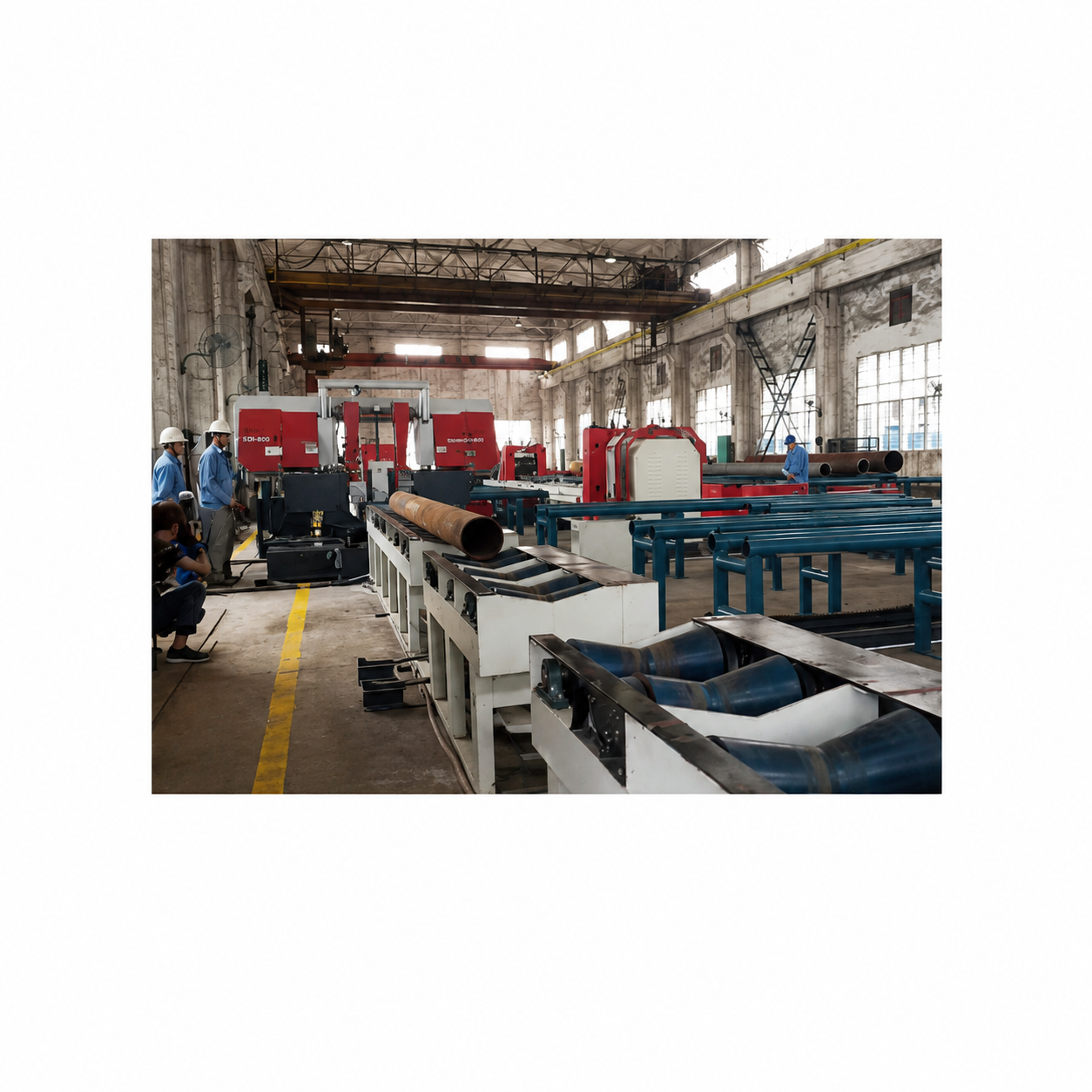

Large pipe prefabrication plants, pressure vessel manufacturing and power plant maintenance projects.
Nuclear power, shipbuilding, natural gas pipelines and large industrial pipeline installation.
