SME Bench-Type Precision Pipe Cutting Machine
SME Bench-Type Precision Pipe Cutting Machine

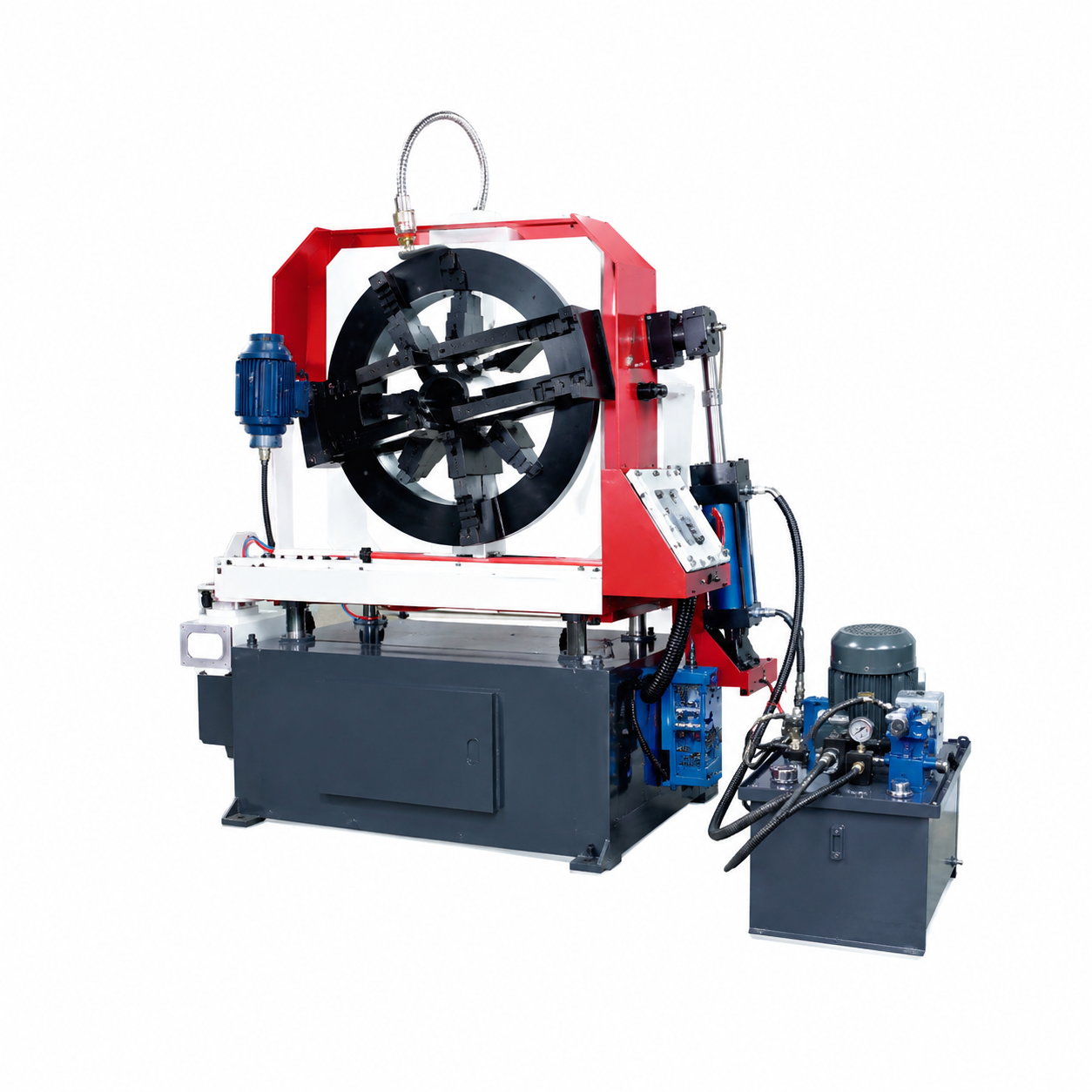

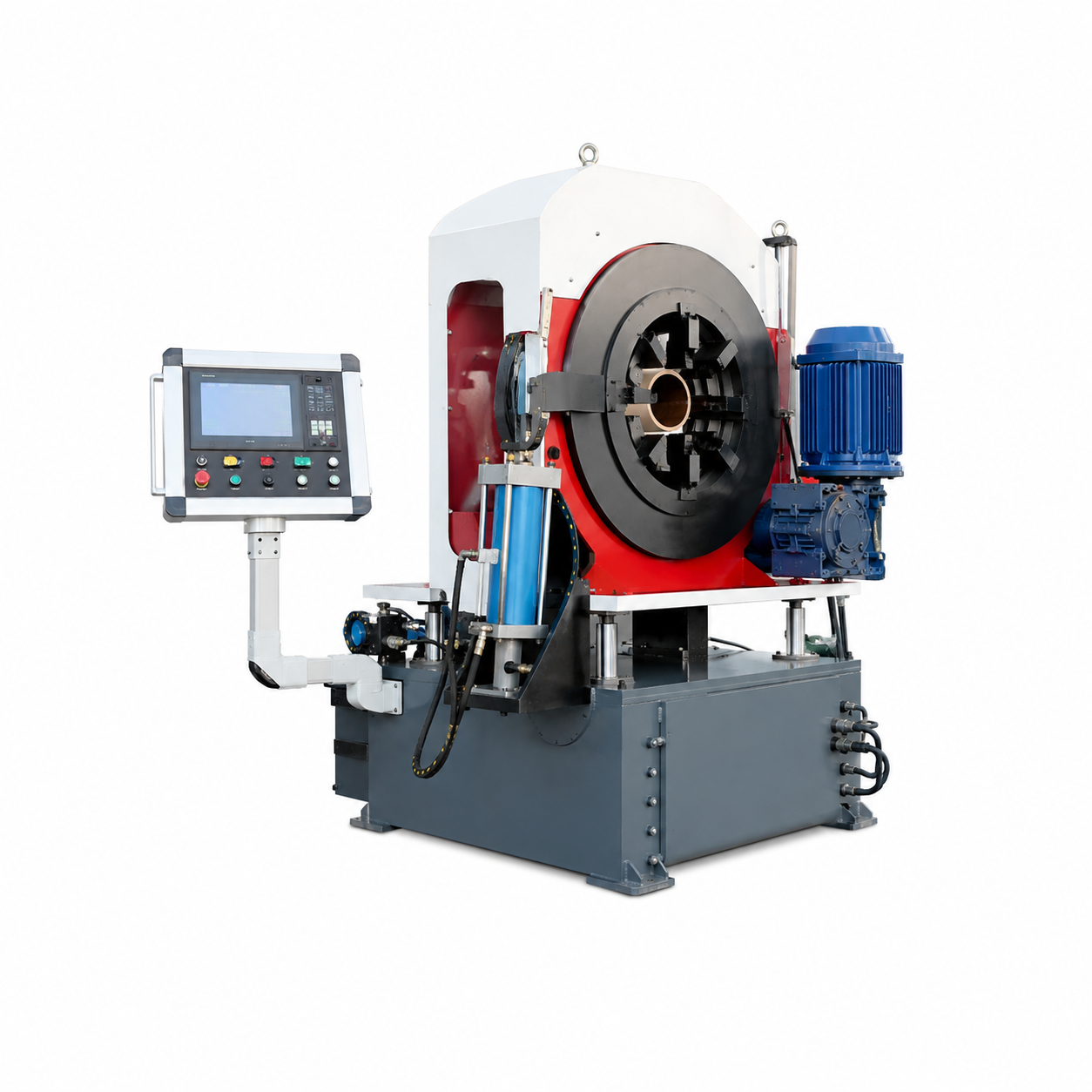

The SME bench-type precision pipe cutting machine is a fixed pipe cutting system for pipeline prefabrication and industrial pipe processing. It is mainly used for pipe cutting, pipe end beveling, synchronized cutting and beveling, and pipe end preparation before welding. The bench-type frame is suitable for centralized workshop processing, batch pipe prefabrication and applications requiring stable machining quality.
The machine is equipped with automatic clamping, mechanical automatic feeding, automatic retraction, circulating water cooling and spindle speed control. After one clamping, it can complete cutting, cutting with single-side beveling, cutting with double-side beveling and cutting with compound beveling. Compared with manual cutting and grinding, the SME bench-type machine helps reduce secondary finishing time, improve pipe end squareness, bevel consistency and welding assembly efficiency.
The SME series includes SME-168-II, SME-325-II, SME-426-II, SME-630-II, SME-762-II and SME-914-II, covering a pipe cutting range from 30mm to 914mm. It can process carbon steel, stainless steel and other pipe materials. The machine is suitable for petrochemical, natural gas, power construction, boiler, pressure vessel, shipbuilding, water treatment, steel structure pipeline and industrial installation projects.
Suitable for workshop pipe prefabrication, batch cutting, pipe end beveling and welding preparation. Bench-type structure for fixed workstations, high-frequency processing and continuous operation. Supports cutting, cutting with beveling, cutting with compound beveling and other processing methods. Supports V-type, I-type, U-type and double V-type bevel forms for different welding requirements. Mechanical automatic feeding and automatic retraction reduce manual operation intensity. Circulating water cooling helps reduce cutting heat and improve tool stability. Spindle variable-speed control allows adjustment according to pipe diameter, material and wall thickness. Hydraulic clamping and multi-jaw clamping improve pipe holding stability. Suitable for carbon steel, stainless steel and other industrial pipe materials. Used for petrochemical pipelines, natural gas lines, power pipelines, boiler pipes, pressure vessels and shipbuilding pipe prefabrication.
Technical specifications (reference)
| Item | Description |
|---|---|
| Product Name | SME Bench-Type Precision Pipe Cutting Machine |
| Product Category | Bench-type pipe cutting machine / high-speed precision pipe cutting machine / pipe cutting and beveling integrated equipment |
| Workpiece Type | Industrial pipelines, pressure pipelines, petrochemical pipelines, natural gas pipelines, boiler pipes, shipbuilding pipes and prefabricated pipe sections |
| Processing Method | Pipe cutting, cutting with beveling, cutting with compound beveling, single-side beveling, double-side beveling |
| Bevel Forms | V-type / I-type / U-type / double V-type; double V beveling requires double-side clamping, standard 30° bevel |
| Clamping Method | Multi-jaw clamping / hydraulic clamping, depending on model configuration |
| Lifting Method | 4-axis synchronized lifting |
| Feed Mode | Mechanical automatic feeding |
| Retraction Mode | Mechanical automatic retraction |
| Cooling Method | Circulating water cooling |
| Spindle Control | Spindle variable-speed control |
| Processing Capability | One feed can complete cutting, single-side beveling or double-side beveling |
| Number of Tools in Simultaneous Processing | 1 / 2 |
| Hydraulic System Power | 2.2KW |
| Servo Motor Power | 0.75KW |
| Water Pump Power | 750W |
| Feed Amount | 0.07mm/rev |
| Processing Wall Thickness | Carbon steel ≤20mm; stainless steel ≤15mm |
| SME-168-II | Cutting range 30–168mm; main motor power 2.2KW; cutter speed 0–40r/min; voltage/frequency 380V 50Hz; 4-axis synchronized lifting; water pump power 750W; mechanical automatic feeding; mechanical automatic retraction |
| SME-325-II | Cutting range 80–325mm; main motor power 3KW; cutter speed 0–30r/min; voltage/frequency 380V 50Hz; 4-axis synchronized lifting; water pump power 750W; mechanical automatic feeding; mechanical automatic retraction |
| SME-426-II | Cutting range 126–426mm; main motor power 7.5KW; cutter speed 0–30r/min; voltage/frequency 380V 50Hz; 4-axis synchronized lifting; water pump power 750W; mechanical automatic feeding; mechanical automatic retraction |
| SME-630-II | Cutting range 325–630mm; main motor power 7.5KW; cutter speed 0–30r/min; voltage/frequency 380V 50Hz; 4-axis synchronized lifting; water pump power 750W; mechanical automatic feeding; mechanical automatic retraction |
| SME-762-II | Cutting range 457–762mm; main motor power 7.5KW; cutter speed 0–30r/min; voltage/frequency 380V 50Hz; 4-axis synchronized lifting; water pump power 750W; mechanical automatic feeding; mechanical automatic retraction |
| SME-914-II | Cutting range 762–914mm; main motor power 11KW; cutter speed 0–30r/min; voltage/frequency 380V 50Hz; 4-axis synchronized lifting; water pump power 750W; mechanical automatic feeding; mechanical automatic retraction |
| Available Processes | Cutting, cutting + beveling, cutting + compound beveling, V beveling, compound beveling, single-side beveling and double-side beveling |
| Typical Applications | Pipe prefabrication, pipe cutting, welding bevel preparation, petrochemical pipe processing, shipbuilding pipe processing and pressure pipe processing |
The specific values shall be subject to the factory technical agreement and quotation sheet.
Typical applications

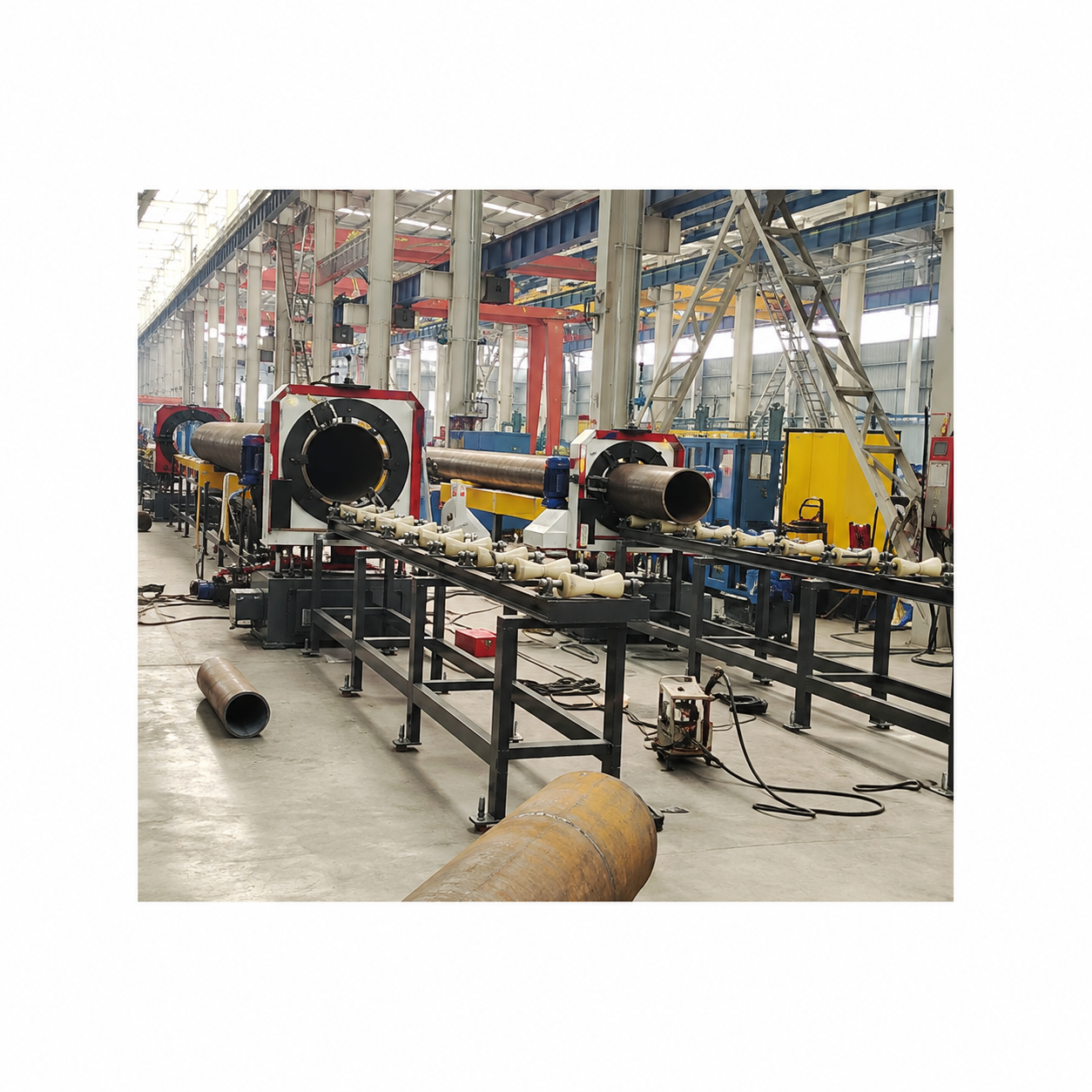

Batch cutting and beveling in petrochemical pipe prefabrication.
Workshop prefabrication and welding preparation for natural gas, power and boiler pipelines.
Pipe section processing for pressure vessels, shipbuilding and water treatment projects.
Pipe cutting, end facing and bevel forming in industrial installation projects.
Replacing manual cutting and grinding to improve pipe end consistency and welding preparation efficiency.
