Internal Expansion Pipe Beveling Machine - ND Series

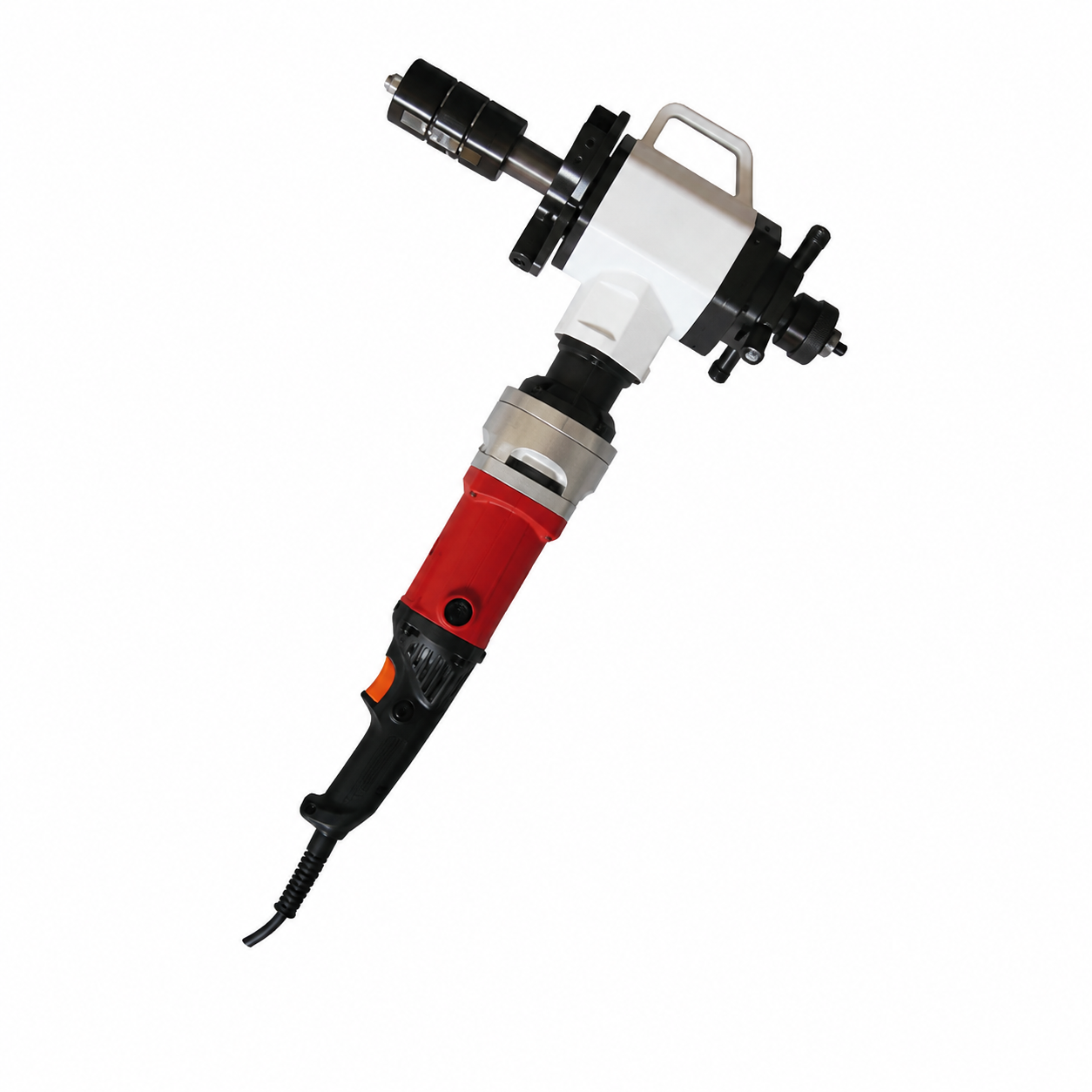

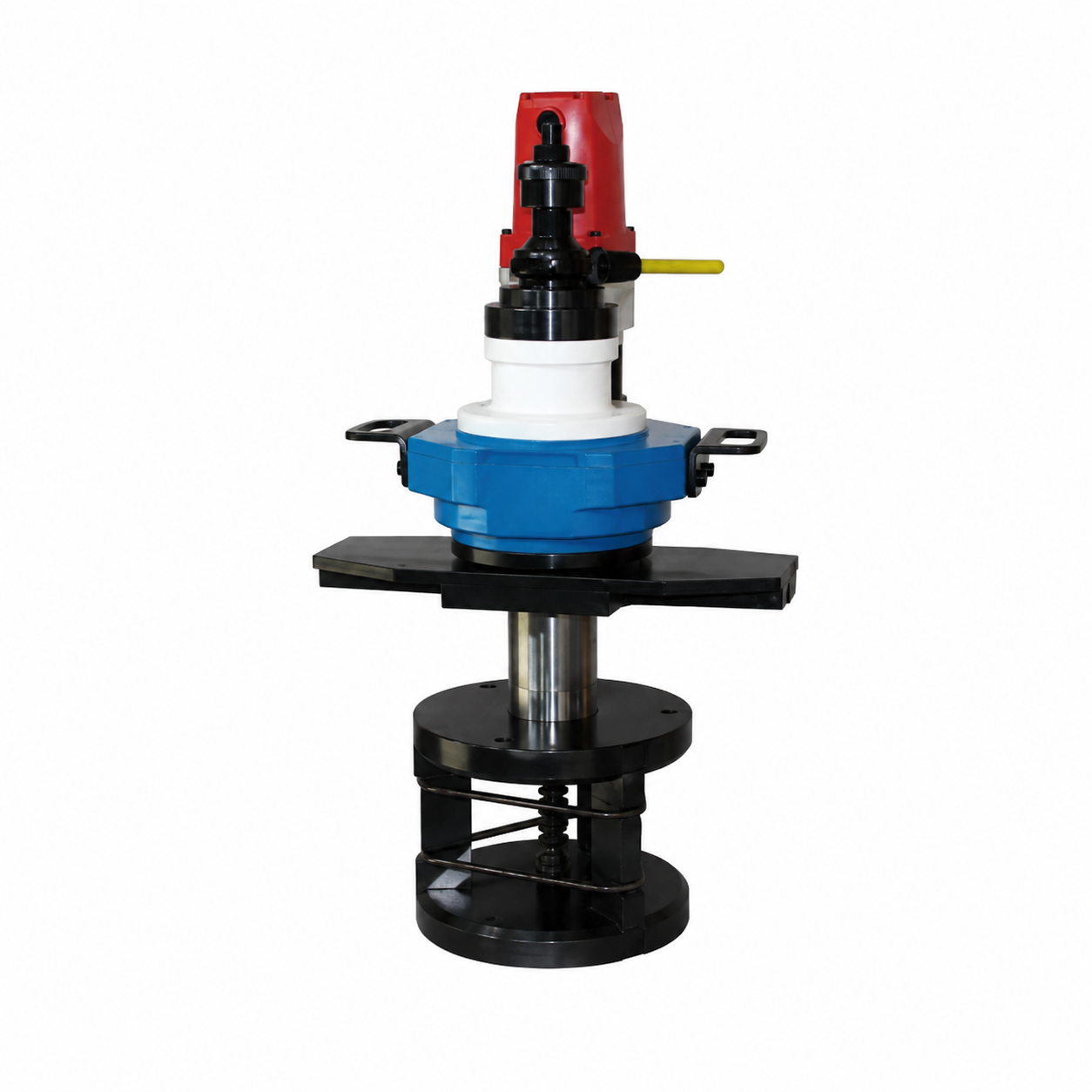

ND Series Internal Expansion Pipe Beveling Machine
The ND series internal expansion pipe beveling machine is a portable pipe end preparation tool for industrial pipeline welding preparation. It is mainly used for pipe end beveling, end facing, welding preparation and on-site repair work. The machine uses an internal expansion clamping structure, supporting and positioning from the inner diameter of the pipe. After clamping, it can perform stable pipe end machining, making it suitable for on-site installation, pipeline prefabrication and shutdown maintenance projects.
According to different pipe diameter ranges, the series includes ND-80-T, ND-120-T, ND-150-T, ND-252, ND-352, ND-426 and ND-630 models, covering a pipe processing range from 28mm to 600mm. Users can select the proper model according to pipe diameter, wall thickness, material and available working space. The machine can process V-type, I-type and U-type bevels, with tool angle options including 30°, 37.5°, 60°, 0° and internal bevel 15°.
The ND series internal expansion pipe beveling machine is suitable for carbon steel, stainless steel, alloy steel and other metal pipes. It is widely used in petrochemical pipelines, natural gas pipelines, power plant maintenance, boiler pipelines, pressure vessels, shipbuilding, food, pharmaceutical, water treatment and industrial pipeline installation. Compared with manual grinding, the machine helps improve bevel consistency, reduce on-site finishing time and improve pipe end preparation quality before welding.
Internal expansion clamping structure, positioned and supported from the pipe inner diameter. Suitable for pipe end beveling, end facing, welding preparation and on-site maintenance. Includes multiple models: ND-80-T, ND-120-T, ND-150-T, ND-252, ND-352, ND-426 and ND-630. Processing range covers 28–600mm pipe diameters, with model selection according to pipe size and job-site conditions. Supports common bevel forms such as V-type, I-type and U-type. Tool angles available: 30°, 37.5°, 60°, 0° and internal bevel 15°. Stable feed performance for users requiring consistent pipe bevel quality and reliable welding preparation. Suitable for carbon steel, stainless steel, alloy steel and other pipe materials. Used in petroleum, natural gas, chemical, power, boiler, pressure vessel, shipbuilding, food, pharmaceutical and water treatment industries.
Technical specifications (reference)

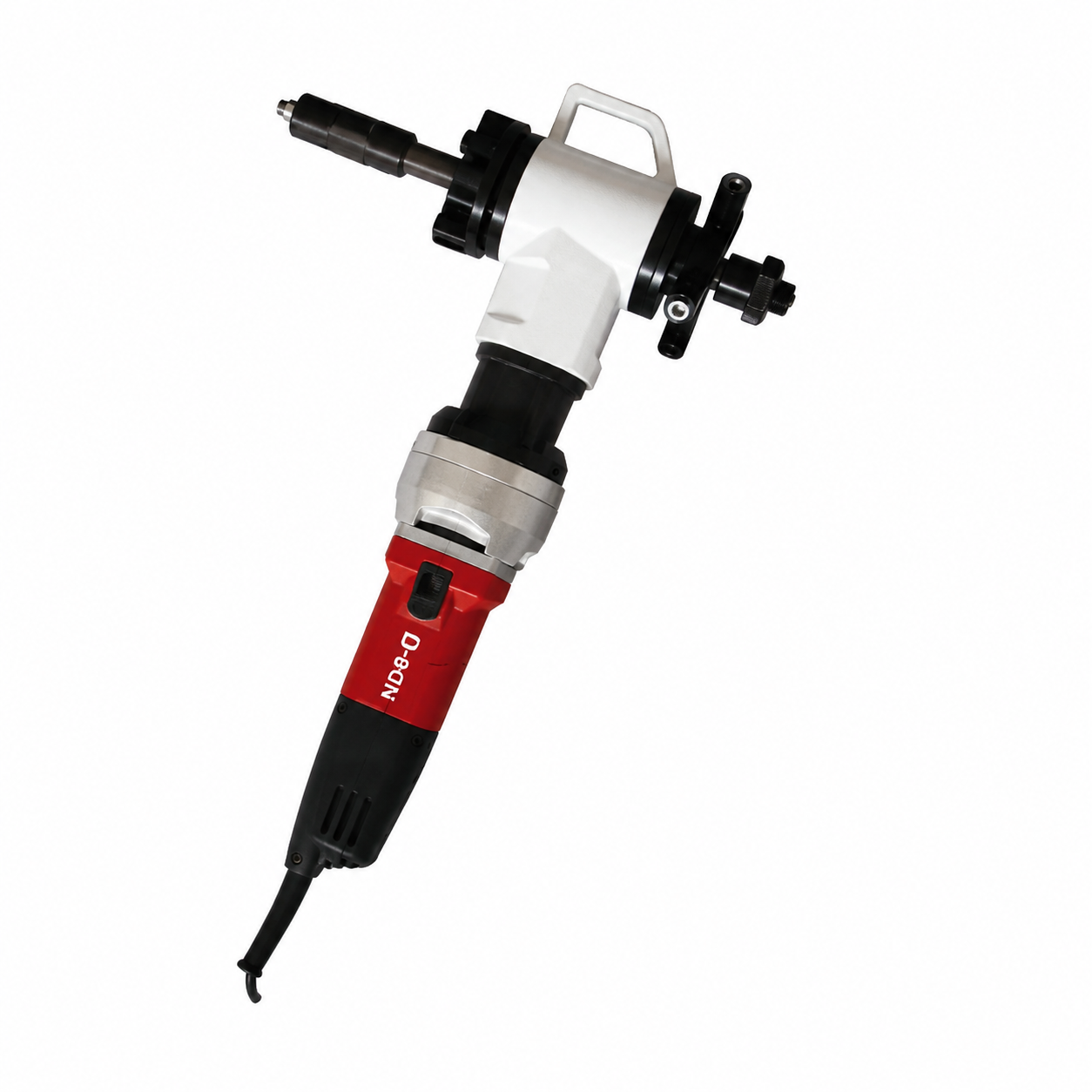

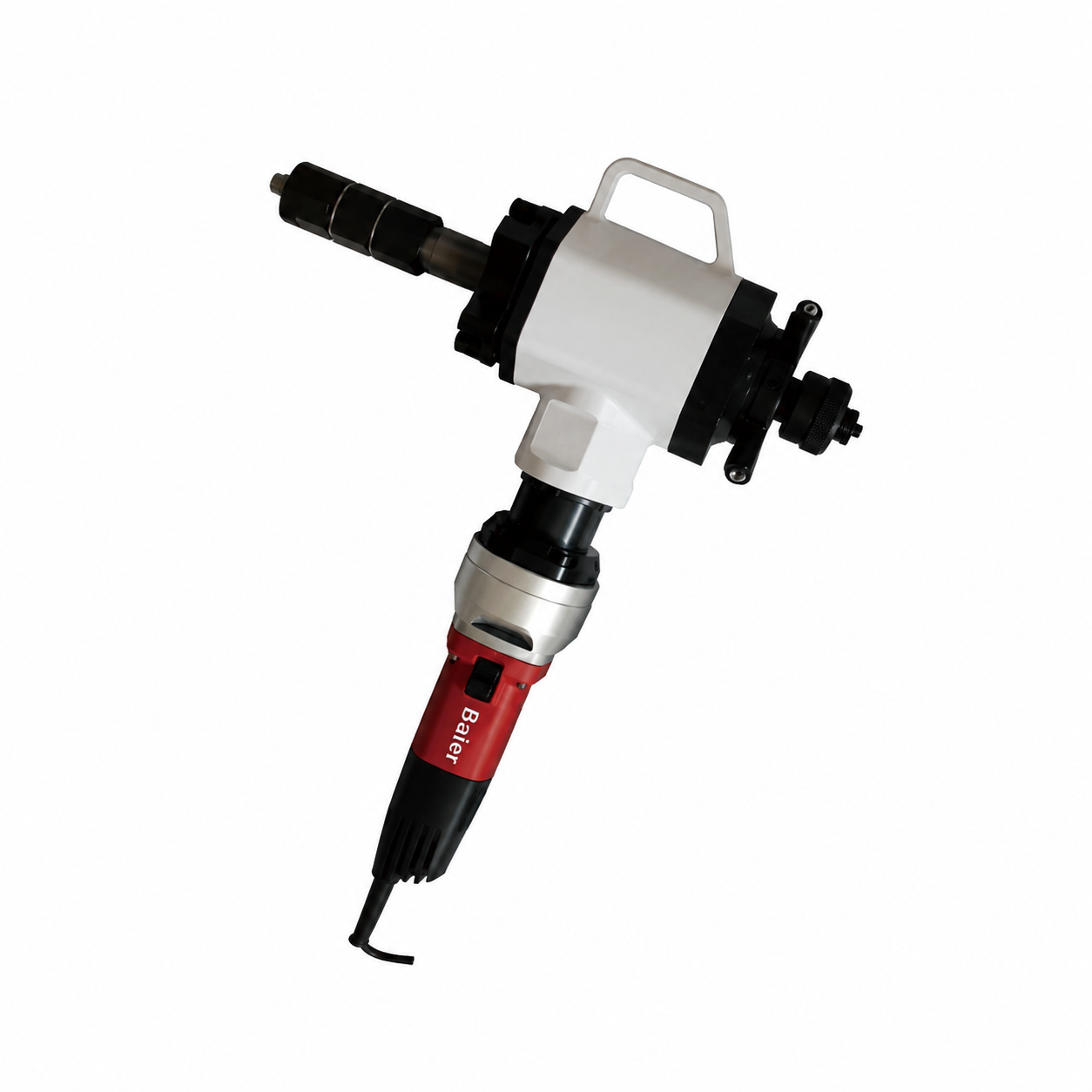

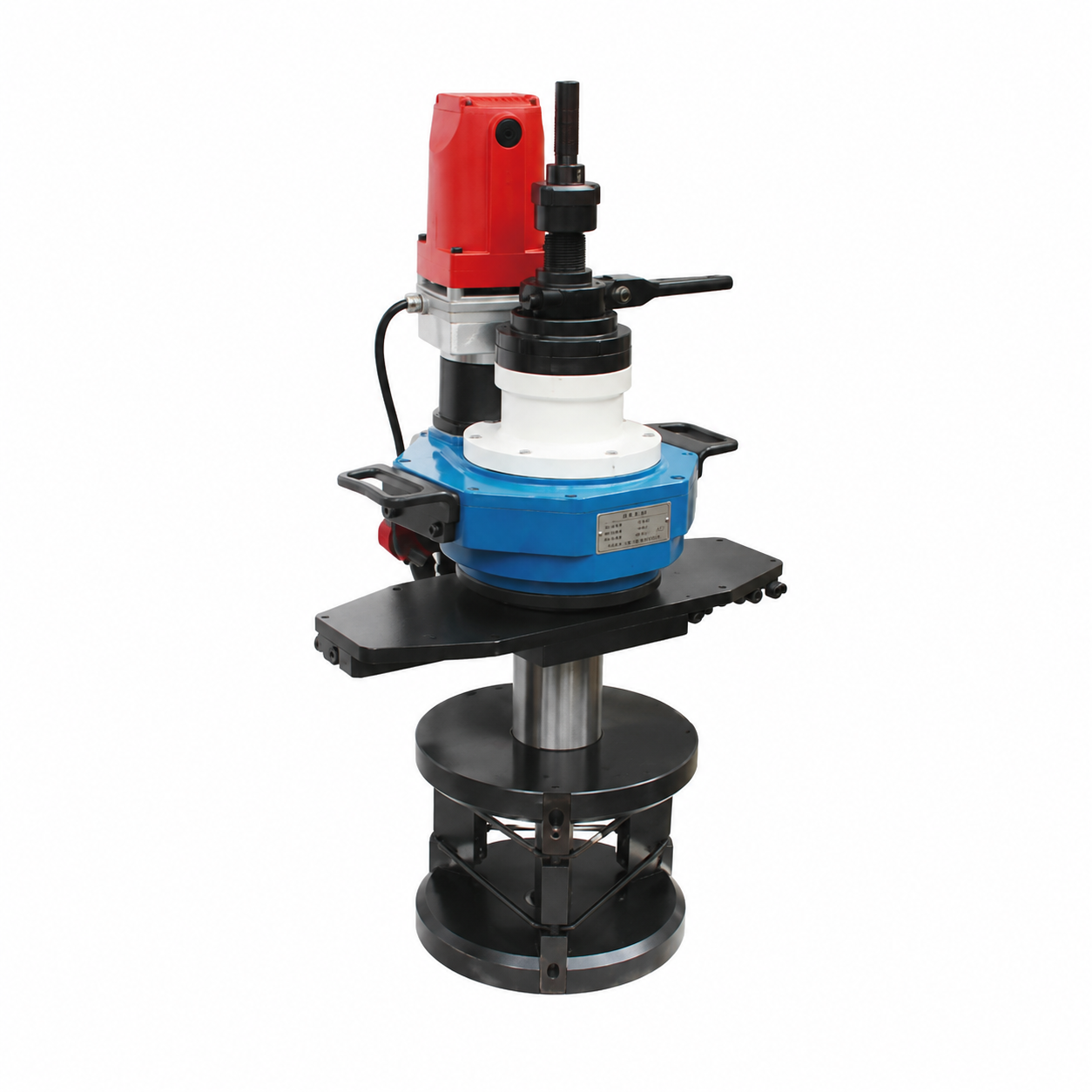

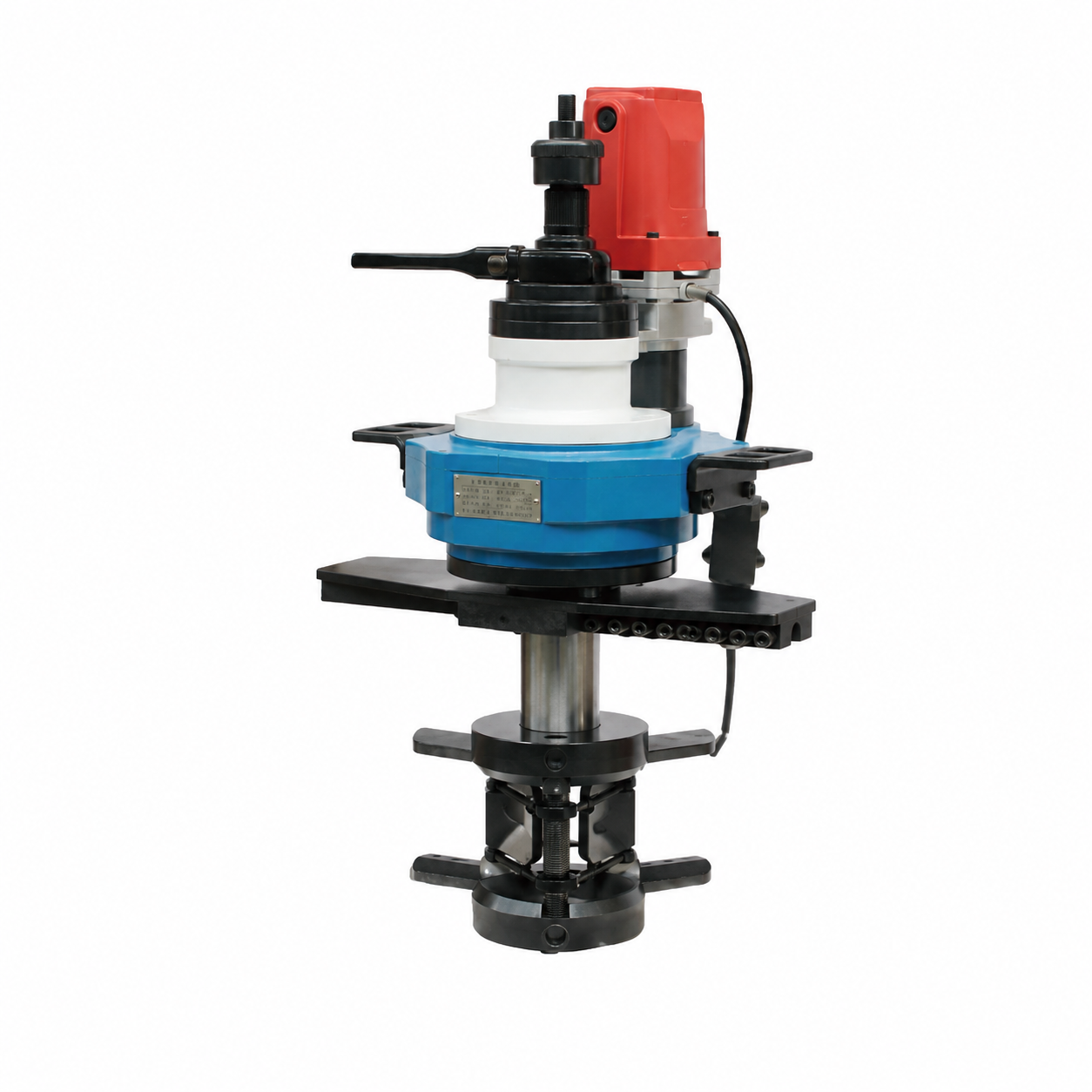

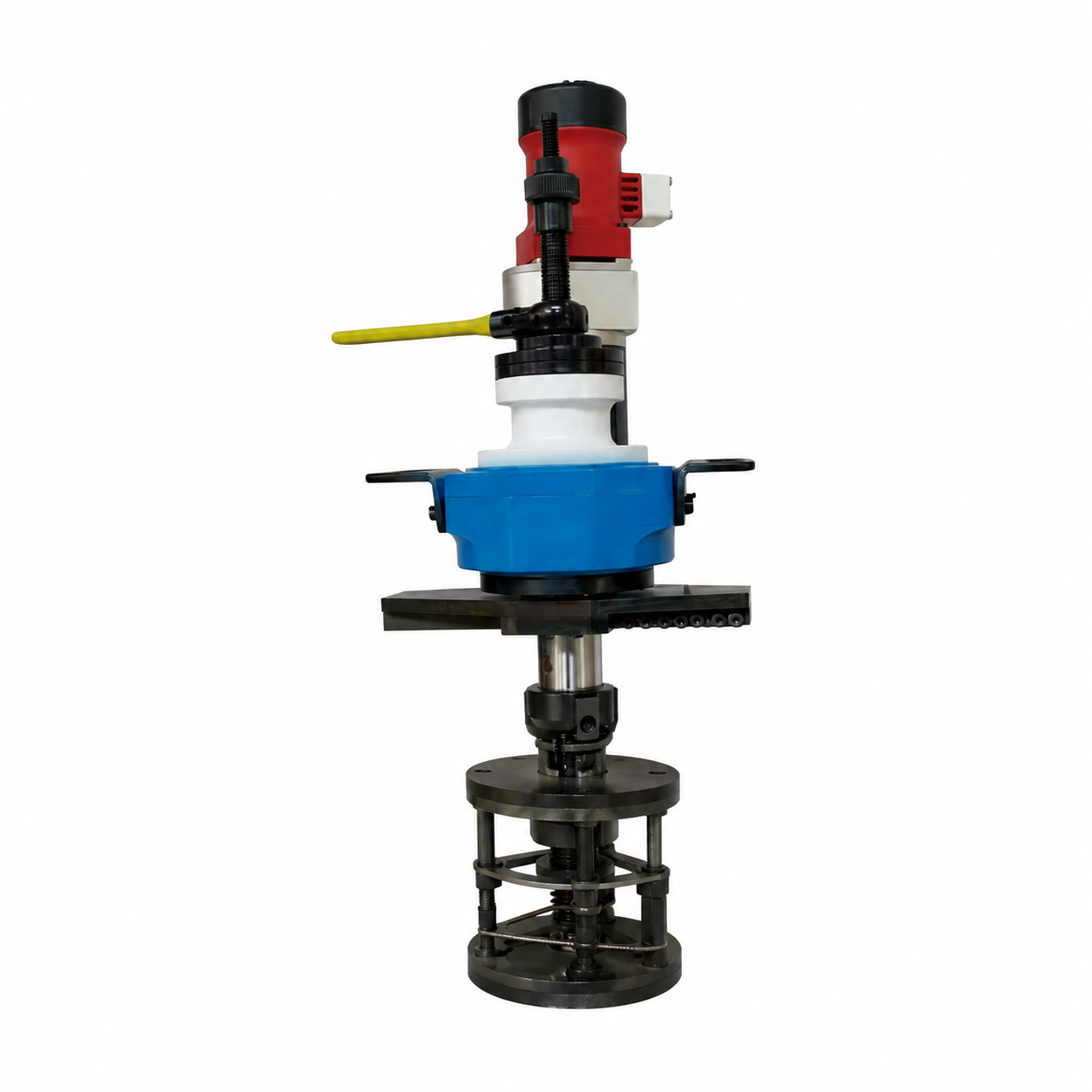

| Item | Description |
|---|---|
| Product Name | ND Series Internal Expansion Pipe Beveling Machine |
| Product Category | Internal expansion beveling machine / internal expansion pipe beveling machine / pipe welding preparation equipment |
| Workpiece Type | Industrial pipelines, pressure pipelines, boiler pipelines, petrochemical pipelines, natural gas pipelines and equipment pipe ends |
| Installation Method | Internal expansion clamping, positioned and supported from the pipe inner diameter |
| Processing Method | Pipe end beveling, end facing and welding preparation |
| Applicable Bevel Forms | V-type / I-type / U-type |
| Applicable Materials | Carbon steel, stainless steel, alloy steel and other metal pipes |
| Feed Amount | 0.07–0.1mm |
| Axial Feed Depth | 50mm |
| Tool Angle Options | 30° / 37.5° / 60° / 0° / internal bevel 15° |
| ND-80-T | Processing range 28–76mm; wall thickness ≤15mm; motor power 1.2KW; machine weight 15KG; cutter speed 60R/min; axial feed depth 50mm; feed amount 0.07–0.1mm; bevel forms V / I / U; tool angles 30° / 37.5° / 60° / 0° / internal bevel 15° |
| ND-120-T | Processing range 45–120mm; wall thickness ≤15mm; motor power 1.2KW; machine weight 25KG; cutter speed 50R/min; axial feed depth 50mm; feed amount 0.07–0.1mm; bevel forms V / I / U; tool angles 30° / 37.5° / 60° / 0° / internal bevel 15° |
| ND-150-T | Processing range 65–159mm; wall thickness ≤15mm; motor power 1.5KW; machine weight 25KG; cutter speed 35R/min; axial feed depth 50mm; feed amount 0.07–0.1mm; bevel forms V / I / U; tool angles 30° / 37.5° / 60° / 0° / internal bevel 15° |
| ND-252 | Processing range 80–240mm; wall thickness ≤15mm; motor power 1.5KW; machine weight 36KG; cutter speed 16R/min; axial feed depth 50mm; feed amount 0.07–0.1mm; bevel forms V / I / U; tool angles 30° / 37.5° / 60° / 0° / internal bevel 15° |
| ND-352 | Processing range 150–330mm; wall thickness ≤15mm; motor power 1.8KW; machine weight 62KG; cutter speed 14R/min; axial feed depth 50mm; feed amount 0.07–0.1mm; bevel forms V / I / U; tool angles 30° / 37.5° / 60° / 0° / internal bevel 15° |
| ND-426 | Processing range 273–426mm; wall thickness ≤15mm; motor power 1.8KW; machine weight 75KG; cutter speed 14R/min; axial feed depth 50mm; feed amount 0.07–0.1mm; bevel forms V / I / U; tool angles 30° / 37.5° / 60° / 0° / internal bevel 15° |
| ND-630 | Processing range 300–600mm; wall thickness ≤15mm; motor power 1800W / 1.8KW; machine weight 110KG; cutter speed 10R/min; axial feed depth 50mm; feed amount 0.07–0.1mm; bevel forms V / I / U; tool angles 30° / 37.5° / 60° / 0° / internal bevel 15° |
| Typical Applications | Pipe welding preparation, pipe end facing, on-site maintenance, pipeline prefabrication and industrial pipeline installation |
The specific values shall be subject to the factory technical agreement and quotation sheet.

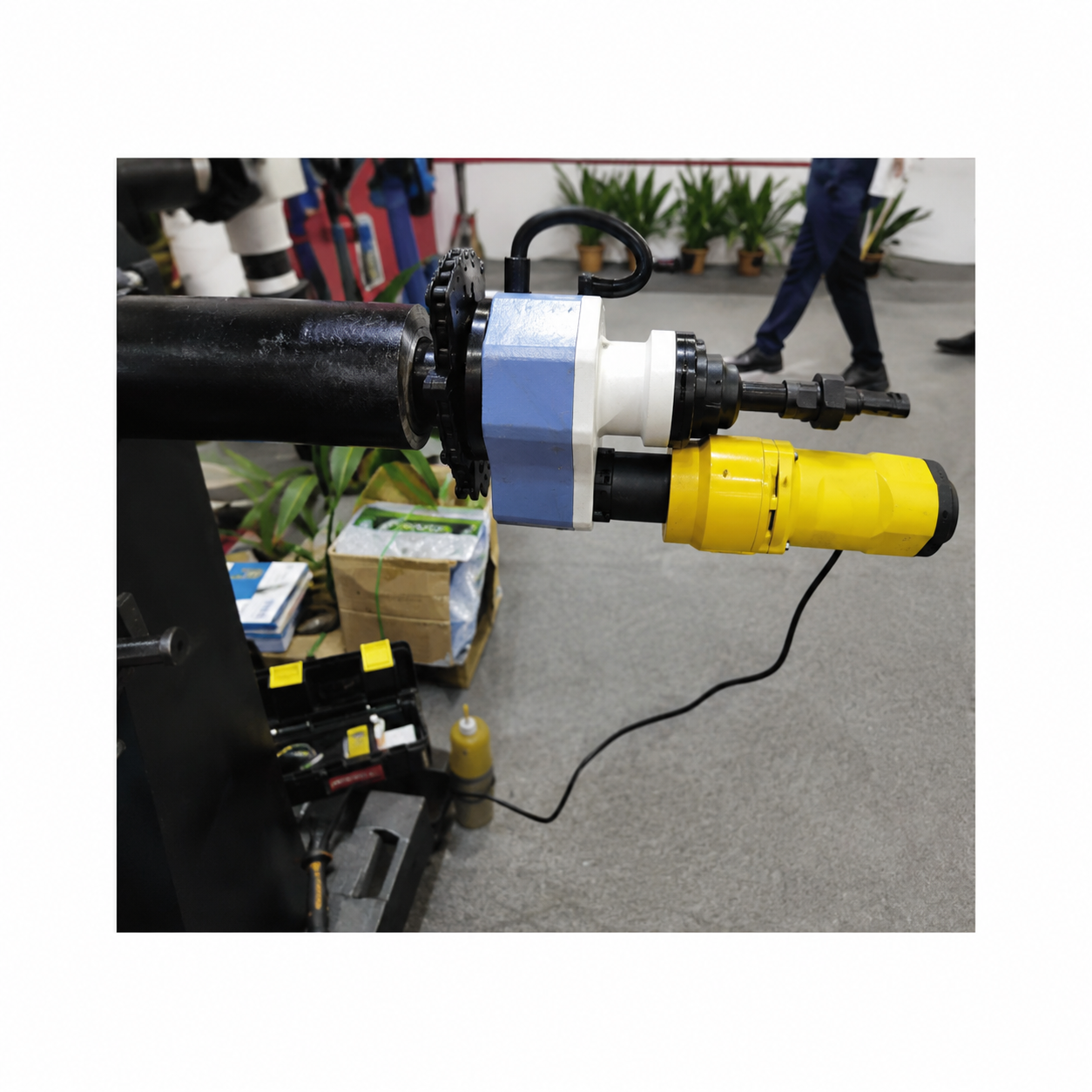

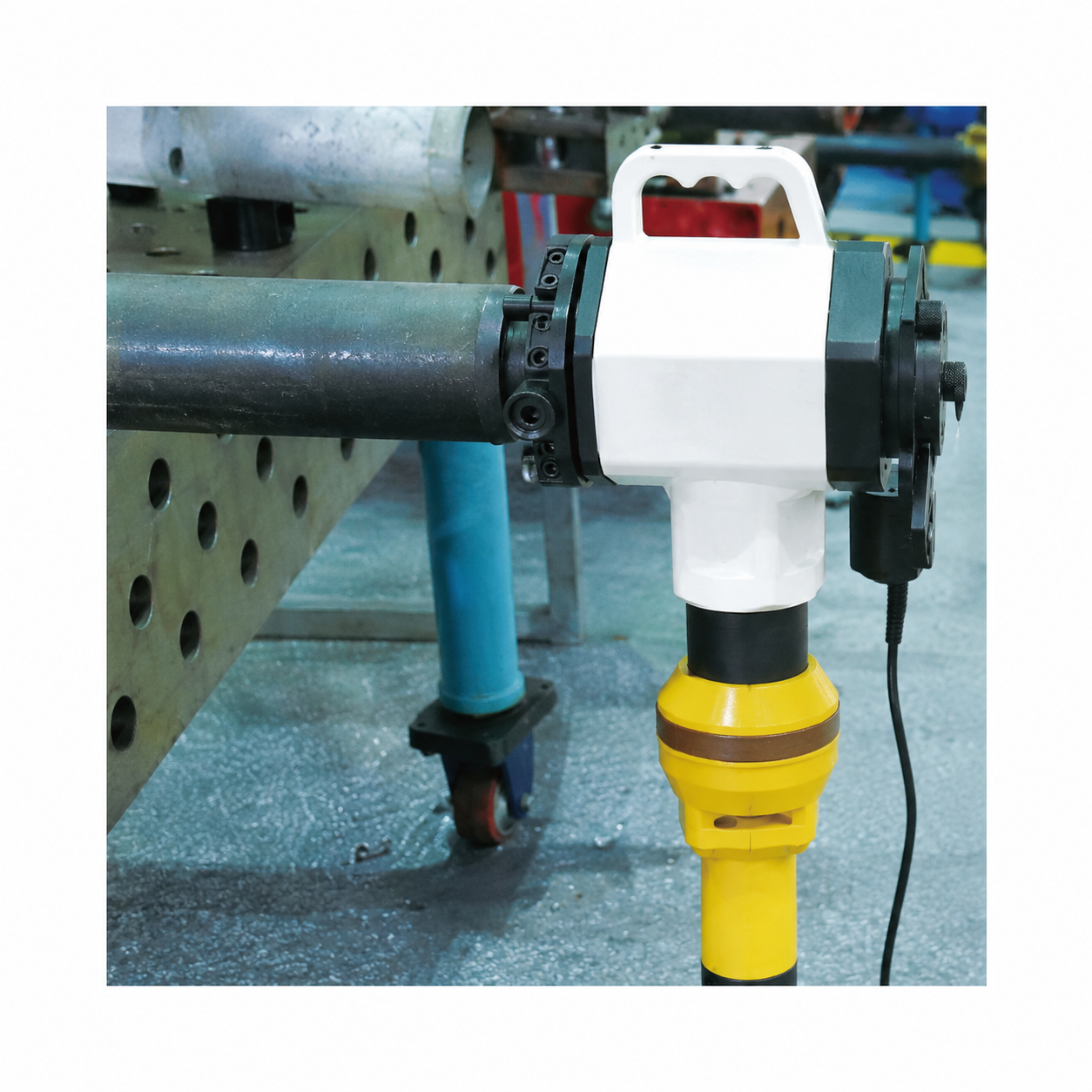

Typical applications
Pipe beveling before welding in petrochemical pipeline projects.
On-site maintenance of natural gas, power plant and boiler pipelines.
Pipe end facing for pressure vessels, equipment nozzles and industrial pipelines.
Pipeline installation in shipbuilding, water treatment, food and pharmaceutical industries.
Emergency pipeline repair, pipe end trimming and welding assembly preparation.
