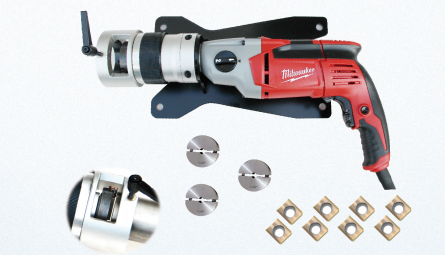

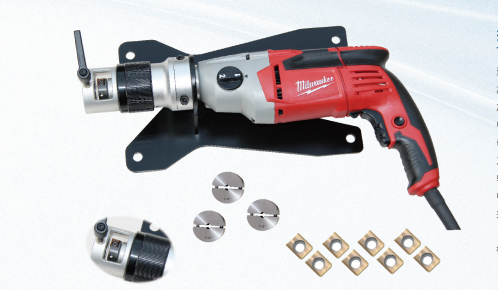

High-Precision Pipe Facing Machine
High-Precision Pipe Facing Machine
The high-precision pipe facing machine is mainly used for pipe end facing, pipe end trimming and welding preparation of small-diameter pipes. The pipe is fixed by clamping fixtures, and the cutter head machines the pipe end surface to make the end face flatter and more square. This helps improve the quality of automatic welding, pipe assembly and tube connection.
The machine is suitable for stainless steel, carbon steel, alloy steel and other metal pipe materials, especially clean pipelines, thin-wall pipes, instrumentation tubing and small-diameter industrial pipelines. Compared with manual grinding or secondary finishing after cutting, the high-precision pipe facing machine helps reduce burrs, improve end face consistency and support better welding preparation quality.
The high-precision pipe facing machine is widely used in semiconductor, pharmaceutical, food and beverage, biotechnology, laboratory piping, clean engineering, instrumentation tubing, industrial pipeline installation and equipment maintenance. For projects requiring a flat pipe end, stable welding preparation and flexible on-site operation, this machine is a practical solution for precision end facing of small-diameter pipes.
Suitable for small-diameter pipe end facing, pipe end trimming and welding preparation. Can process stainless steel, carbon steel, alloy steel and other metal pipes. Portable structure for on-site installation, workshop prefabrication and clean pipeline construction. Helps produce a square pipe end suitable for automatic welding preparation. Multiple fixture sizes are available according to pipe diameter. Suitable for semiconductor, pharmaceutical, food and beverage, biotechnology, laboratory piping and industrial pipeline installation. Used for thin-wall pipes, small-diameter pipes and instrumentation tubing. Custom fixture sizes are available for special pipe diameter requirements.
Technical specifications (reference)
| Item | Description |
|---|---|
| Product Name | High-Precision Pipe Facing Machine |
| Workpiece Type | Small-diameter pipes, clean pipelines, stainless steel pipes, instrumentation tubing and industrial pipe ends |
| Processing Method | Pipe end facing, end trimming and welding preparation |
| Applicable Materials | Stainless steel, carbon steel, alloy steel and other metal pipes |
| Applications | Automatic welding preparation, clean pipeline construction, laboratory piping, instrumentation tubing and industrial pipeline installation |
| Large-Range Model | Applicable bevel type I; processing range 6.35–101.6mm / 0.25in–4in; wall thickness ≤4mm; motor power 1.1KW; machine weight 13.55KG; cutter speed 140R/min; axial feed depth 8mm; voltage 220V 50Hz |
| Large-Range Fixture Sizes | 1/4, 3/8, 1/2, 2/3, 1.0, 2.0, 3.0, 4.0; corresponding to 6.35, 9.525, 12.7, 16.76, 25.4, 50.8, 76.2, 101.6mm; 3 sets standard, custom sizes available |
| Small-Range Model | Applicable bevel type: flat end; processing range 6.35–25.4mm / 1/4in–1in; wall thickness ≤3mm; motor power 1.1KW; machine weight 5KG; cutter speed 350R/min; axial feed depth 5mm; voltage 220V 50Hz |
| Small-Range Fixture Sizes | 1/4, 3/8, 1/2, 2/3, 1.0; corresponding to 6.35, 9.525, 12.7, 16.76, 25.4mm; 3 sets standard, custom sizes available |
| Medium-Range Model | Applicable bevel type: flat end; processing range 6.35–50.8mm / 1/4in–2in; wall thickness ≤3mm; motor power 1.1KW; machine weight 5.75KG; cutter speed 350R/min; axial feed depth 5mm; voltage 220V 50Hz |
| Medium-Range Fixture Sizes | 1/4, 3/8, 1/2, 2/3, 1.0, 2.0; corresponding to 6.35, 9.525, 12.7, 16.76, 25.4, 50.8mm; 3 sets standard, custom sizes available |
| Typical Applications | Pipe end facing, end trimming, clean pipeline welding preparation, stainless steel thin-wall pipe preparation before automatic welding |
The specific values shall be subject to the factory technical agreement and quotation sheet.
Typical applications
Pipe end facing for semiconductor clean pipelines.
Welding preparation of stainless steel pipes in pharmaceutical, food and beverage and biotechnology industries.
End trimming of laboratory piping, instrumentation tubing and small industrial pipes.
Pipe end squaring and burr control before automatic welding.
Small-diameter pipe end processing in workshop prefabrication, on-site installation and equipment maintenance.
