C-Type External Clamping Pipe Beveling Machine
C-Type External Clamping Pipe Beveling Machine

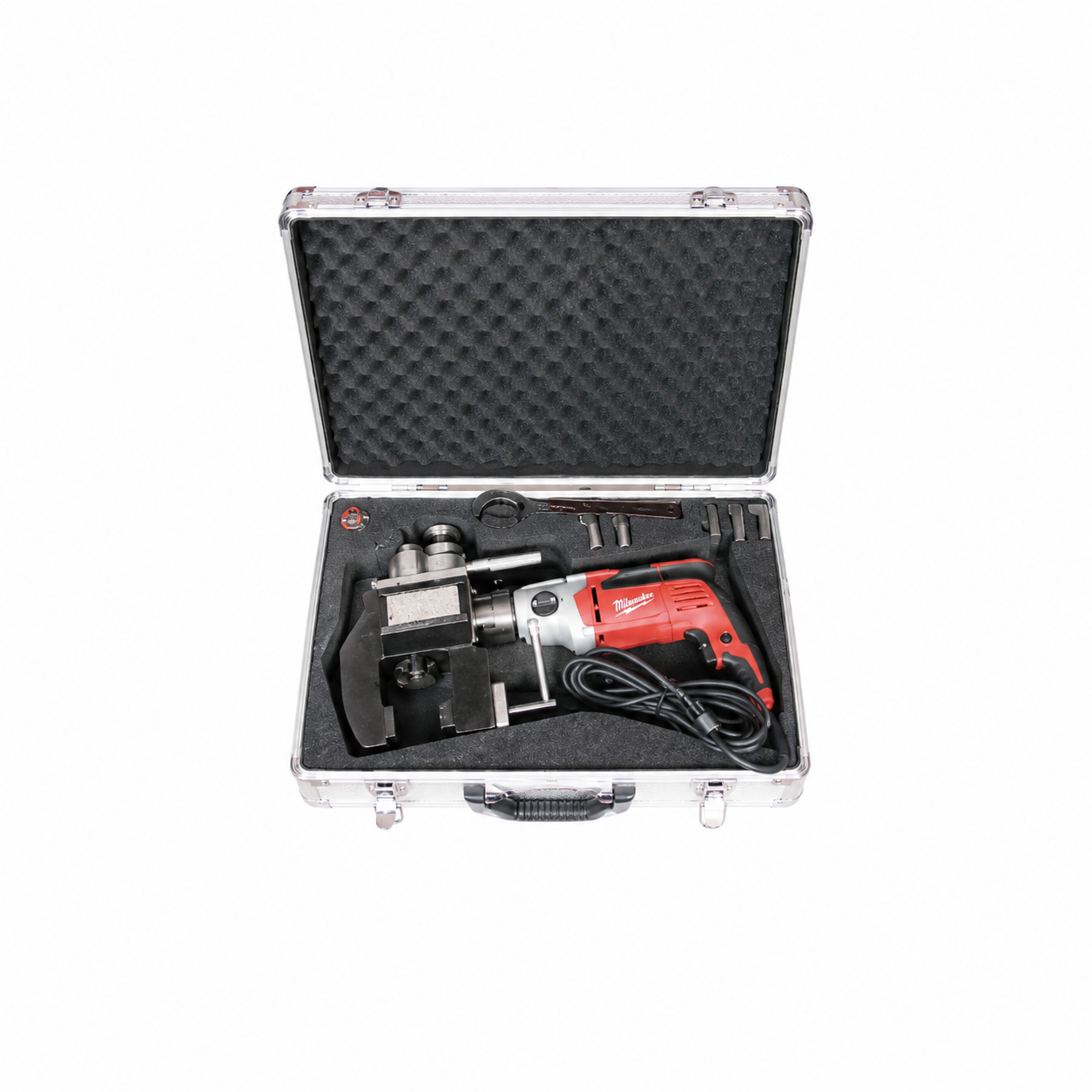

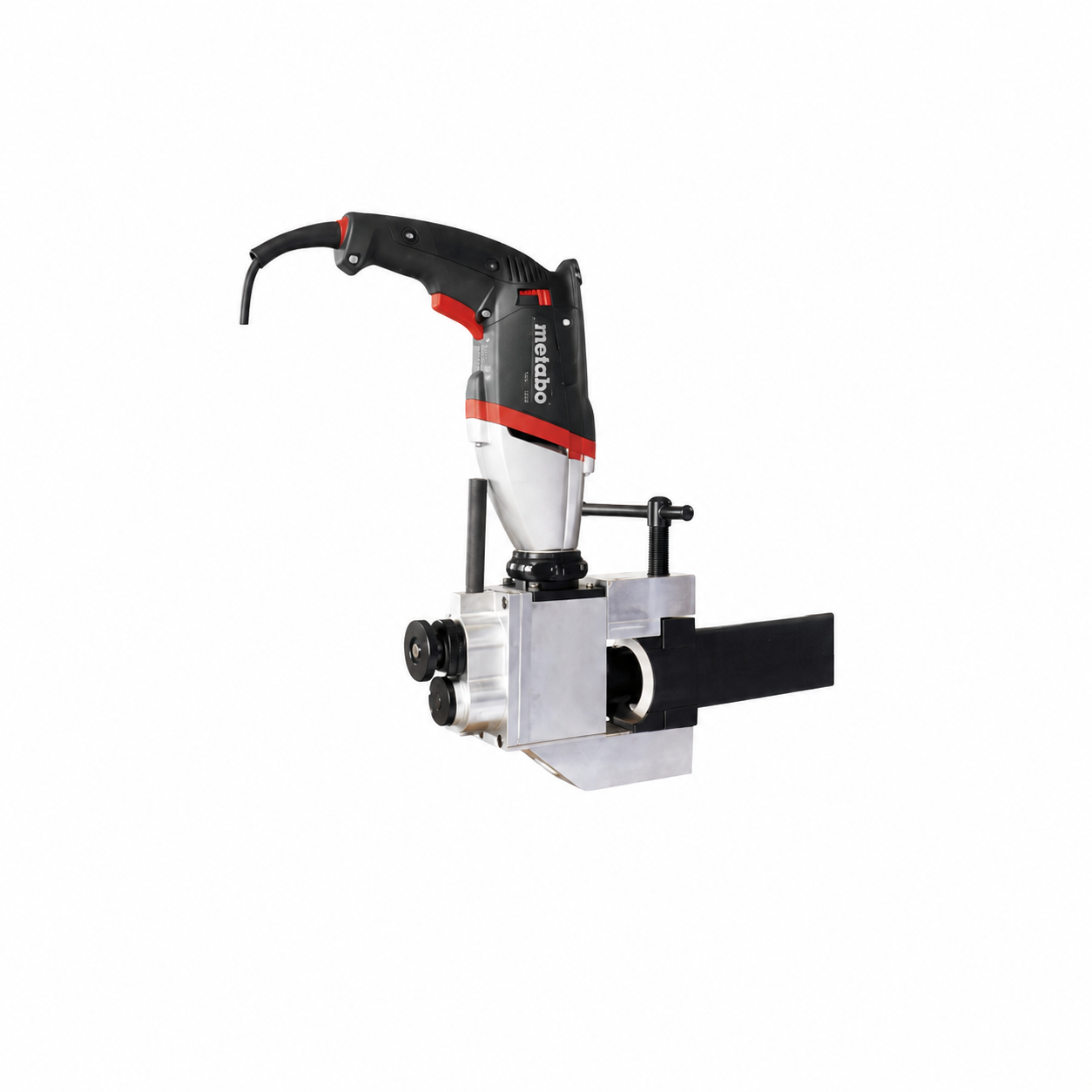

The C-type external clamping pipe beveling machine is a portable pipe end preparation tool for small-diameter pipes. It is mainly used for pipe end beveling, cutting, end facing and welding preparation. The machine adopts an external clamping structure, so it does not need to be sleeved over the pipe end. This makes it suitable for installed pipelines, limited working spaces and on-site maintenance conditions.
The machine uses automatic feed operation and is simple to operate. By changing arc clamping fixtures of different sizes, it can cover pipe diameters from 14mm to 114mm. After clamping, the machine provides accurate positioning and helps improve bevel consistency while reducing manual grinding and on-site finishing time.
The C-type external clamping pipe beveling machine is suitable for carbon steel, stainless steel, alloy steel and other pipe materials. It can be used to prepare U-groove, single V-groove, double V-groove and other bevel forms. It is widely used in petroleum, natural gas, chemical, food, boiler, pharmaceutical, nuclear power, facility construction, industrial pipeline installation and on-site emergency repair projects.
Suitable for beveling, end facing and welding preparation of small-diameter pipes from 14mm to 114mm. External clamping installation provides firm holding and is suitable for installed pipelines and field maintenance. Compact and lightweight structure for narrow spaces, pipe racks, equipment rooms and repair sites. Automatic feed design provides more stable cutting and reduces manual feed error. Arc clamping fixtures can be selected according to pipe diameter for accurate positioning. Suitable for carbon steel, stainless steel, alloy steel and other metal pipe materials. Can prepare different bevel forms such as U-groove, single V-groove and double V-groove. Used in petroleum, natural gas, food, boiler, pharmaceutical, nuclear power, industrial pipeline installation and emergency repair.
Technical specifications (reference)
| Item | Description |
|---|---|
| Product Name | C-Type External Clamping Pipe Beveling Machine |
| Workpiece Type | Small-diameter pipes, installed pipelines and on-site repair pipe ends |
| Installation Method | External clamping installation with arc fixture positioning |
| Processing Method | Pipe end beveling, end facing and cutting |
| Feed Mode | Automatic feed |
| Longitudinal Stroke | 0–22mm |
| Processing Wall Thickness | ≤8mm |
| Applicable Materials | Carbon steel, stainless steel, alloy steel and other metal pipes |
| Bevel Forms | U-groove, single V-groove, double V-groove and other forms |
| WJ-25 | Processing range 14–25mm; motor power 1200W; longitudinal stroke 0–22mm; wall thickness ≤8mm; feed mode automatic; tool size 10×10; arc fixture sizes Φ14, Φ16, Φ18, Φ20, Φ22, Φ25 |
| WJ-45 | Processing range 25–45mm; motor power 1200W; longitudinal stroke 0–22mm; wall thickness ≤8mm; feed mode automatic; tool size 12×12; arc fixture sizes Φ25, Φ28, Φ32, Φ35, Φ38, Φ42, Φ45 |
| WJ-63 | Processing range 25–63mm; motor power 1200W; longitudinal stroke 0–22mm; wall thickness ≤8mm; feed mode automatic; tool size 12×12; arc fixture sizes Φ25, Φ28, Φ32, Φ35, Φ38, Φ42, Φ45, Φ48, Φ51, Φ54, Φ57, Φ60, Φ63 |
| WJ-76 | Processing range 28–76mm; motor power 1200W; longitudinal stroke 0–22mm; wall thickness ≤8mm; feed mode automatic; tool size 12×12; arc fixture sizes Φ28, Φ32, Φ35, Φ38, Φ42, Φ45, Φ48, Φ51, Φ54, Φ57, Φ60, Φ63, Φ65, Φ67, Φ70, Φ73, Φ76 |
| WJ-114 | Processing range 76–114mm; motor power 1200W; longitudinal stroke 0–22mm; wall thickness ≤8mm; feed mode automatic; tool size 12×12; arc fixture sizes Φ76, Φ83, Φ89, Φ95, Φ102, Φ108, Φ114 |
| Typical Applications | Small pipe beveling, welding preparation, on-site maintenance, pipeline installation and emergency repair |
The specific values shall be subject to the factory technical agreement and quotation sheet.
Typical applications
Small-diameter pipe welding preparation.
On-site maintenance of petroleum, natural gas and chemical pipelines.
Pipeline installation in boiler, pharmaceutical, food and nuclear power industries.
Pipe end processing in narrow spaces, equipment rooms and pipe racks.
End facing, beveling and repair work on installed pipelines.
