Unlimited Diameter Round Pipe Beveling - UBM-1020 Series

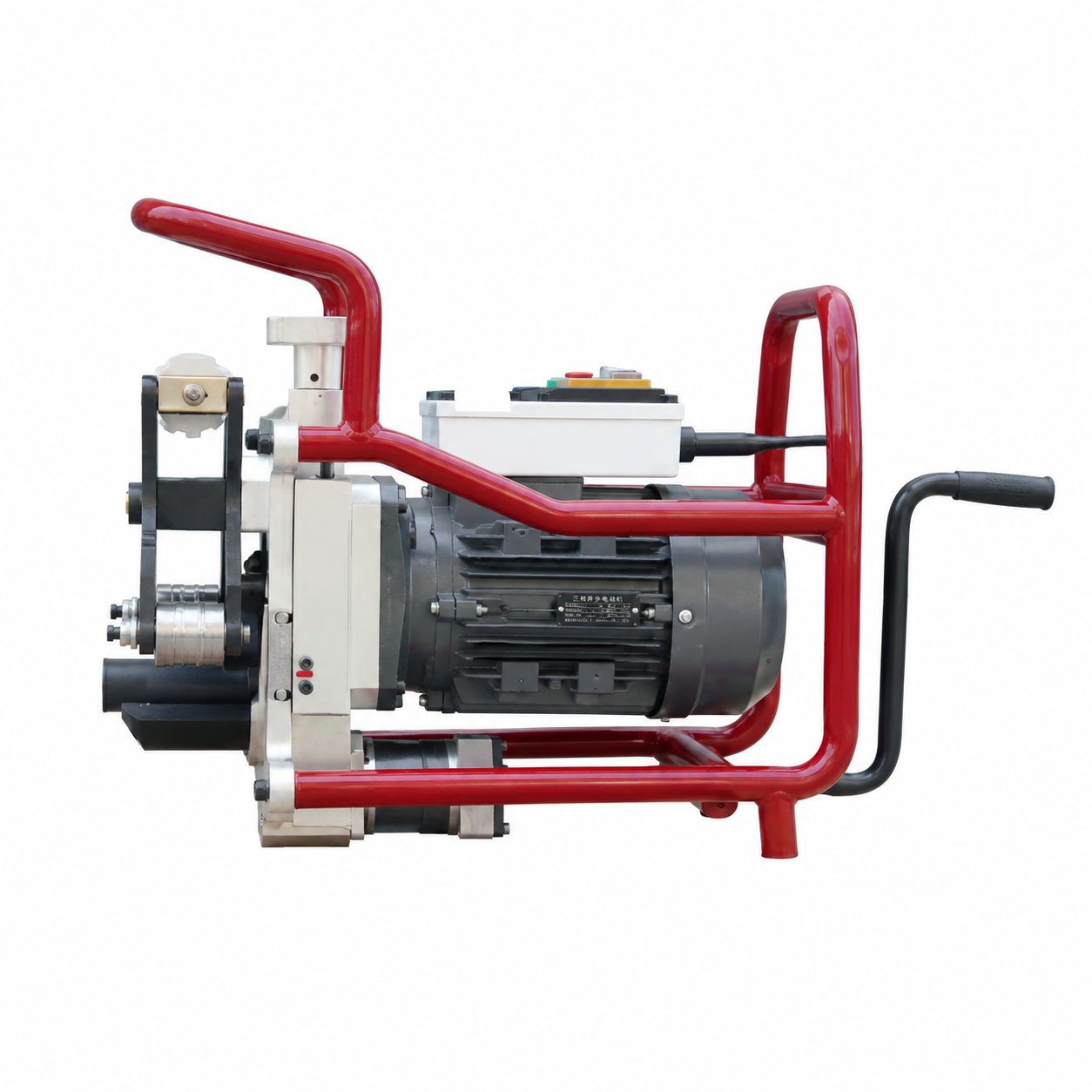

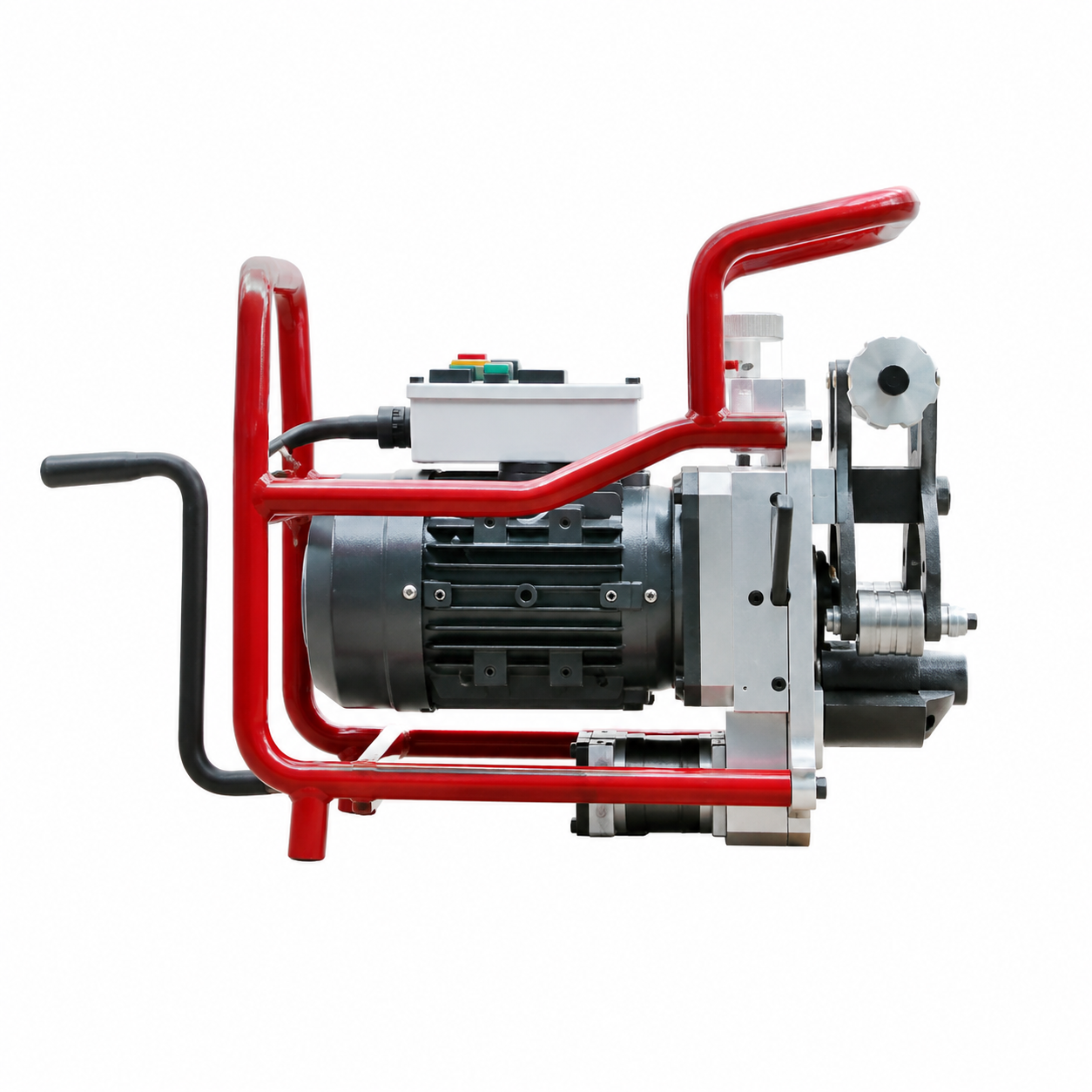

UBM-1020 Unlimited Diameter Round Pipe Beveling Machine
The UBM-1020 unlimited diameter round pipe beveling machine is mainly used for welding preparation of round pipes, cylindrical workpieces and industrial pipe ends. It is suitable for round workpieces with a diameter greater than 114mm, with no upper limit on pipe diameter. It is a practical solution for large round pipe ends that are difficult to process with ordinary pipe beveling tools.
The machine adopts a compact and portable structure, making it easy to install and operate in workshop prefabrication, on-site pipeline installation and shutdown maintenance projects. It can process common bevel angles such as 30°, 37.5° and 45°, and can be used for pipe end facing, external edge beveling and welding preparation. For job sites requiring fast round pipe beveling, the UBM-1020 provides good flexibility.
The UBM-1020 is suitable for carbon steel, stainless steel, alloy steel and other industrial materials. It can be used in petrochemical pipelines, natural gas pipelines, power plant maintenance, boilers, pressure vessels, shipbuilding, food processing, pharmaceutical pipelines, water treatment and industrial pipeline installation. Compared with manual grinding and hand finishing, it helps improve bevel consistency, reduce welding preparation time and improve pipe end preparation quality.
Suitable for round pipes and cylindrical workpieces with a diameter greater than 114mm, with no upper diameter limit. Compact and lightweight structure for workshop fabrication, on-site maintenance and pipeline installation. Supports common bevel angles such as 30°, 37.5° and 45° according to welding requirements. Suitable for carbon steel, stainless steel, alloy steel and other industrial pipe materials. Can be used for pipe end beveling, end facing, welding preparation and light plate edge beveling. Suitable for regular industrial pipe wall thickness, with single-pass bevel width up to 0–10mm. Helps improve bevel consistency and reduce manual grinding time before welding. Used in petrochemical, natural gas, power plant, boiler, pressure vessel, shipbuilding, water treatment and industrial pipeline projects.
Technical specifications (reference)
| Item | Description |
|---|---|
| Product Name | UBM-1020 Unlimited Diameter Round Pipe Beveling Machine |
| Workpiece Type | Round pipes, cylindrical workpieces, industrial pipe ends and light plate edges |
| Pipe Processing Range | Diameter greater than 114mm, no upper diameter limit |
| Plate Processing Thickness | ≤15mm |
| Pipe Wall Thickness | 3–20mm |
| Applicable Materials | Carbon steel, stainless steel, alloy steel and other materials |
| Power Supply | AC 380V 50Hz |
| Voltage | 380V |
| Cutting Power | 1100W / 1.1KW |
| Spindle Speed | 2000r/min |
| Feed Mode | Manual feed |
| Cutter Head Angle | 30° / 37.5° / 45° optional, standard 30° |
| Bevel Angle | 30° / 45° optional |
| Single-Pass Bevel Width | 0–10mm |
| Bevel Edge Width | 0–15mm |
| Machining Surface Width | ≤15mm, C15 |
| Processing Thickness | ＞3mm |
| Cutter Quantity | 4 pieces per set, 8 pieces standard |
| Net Weight | 22kg |
| Gross Weight | 25kg |
| Machine Size | 485×404×286mm |
| Package Size | 550×470×300mm |
| Typical Applications | Round pipe beveling, pipe end facing, welding preparation and on-site pipeline maintenance |
The specific values shall be subject to the factory technical agreement and quotation sheet.
Typical applications

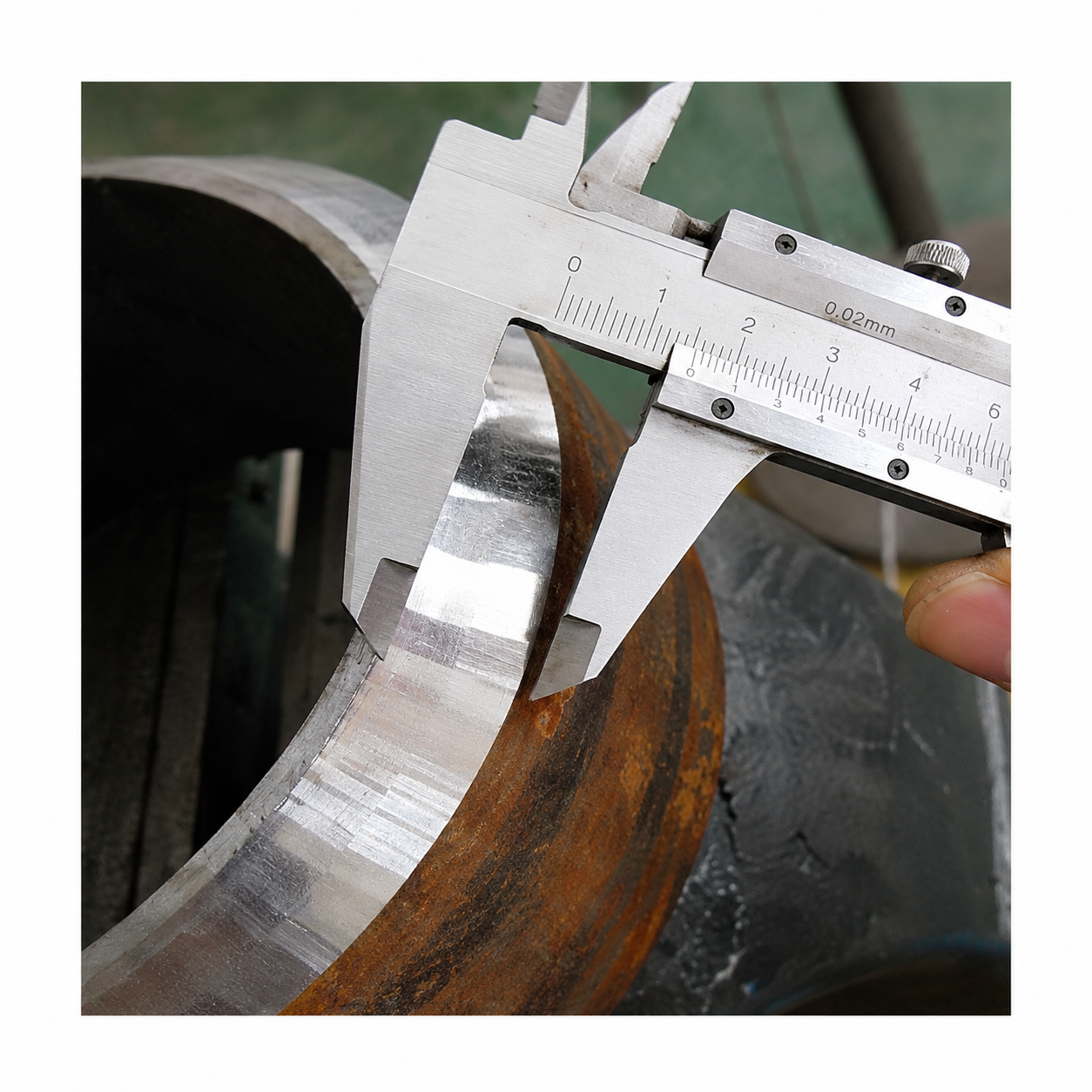

Welding preparation for large round pipe ends.
On-site maintenance of petrochemical, natural gas, power plant and boiler pipelines.
End facing and beveling of pressure vessel sections, cylindrical workpieces and round pipe ends.
Pipeline installation in shipbuilding, water treatment, food processing and pharmaceutical industries.
Replacing manual grinding to improve bevel consistency and welding preparation efficiency.
