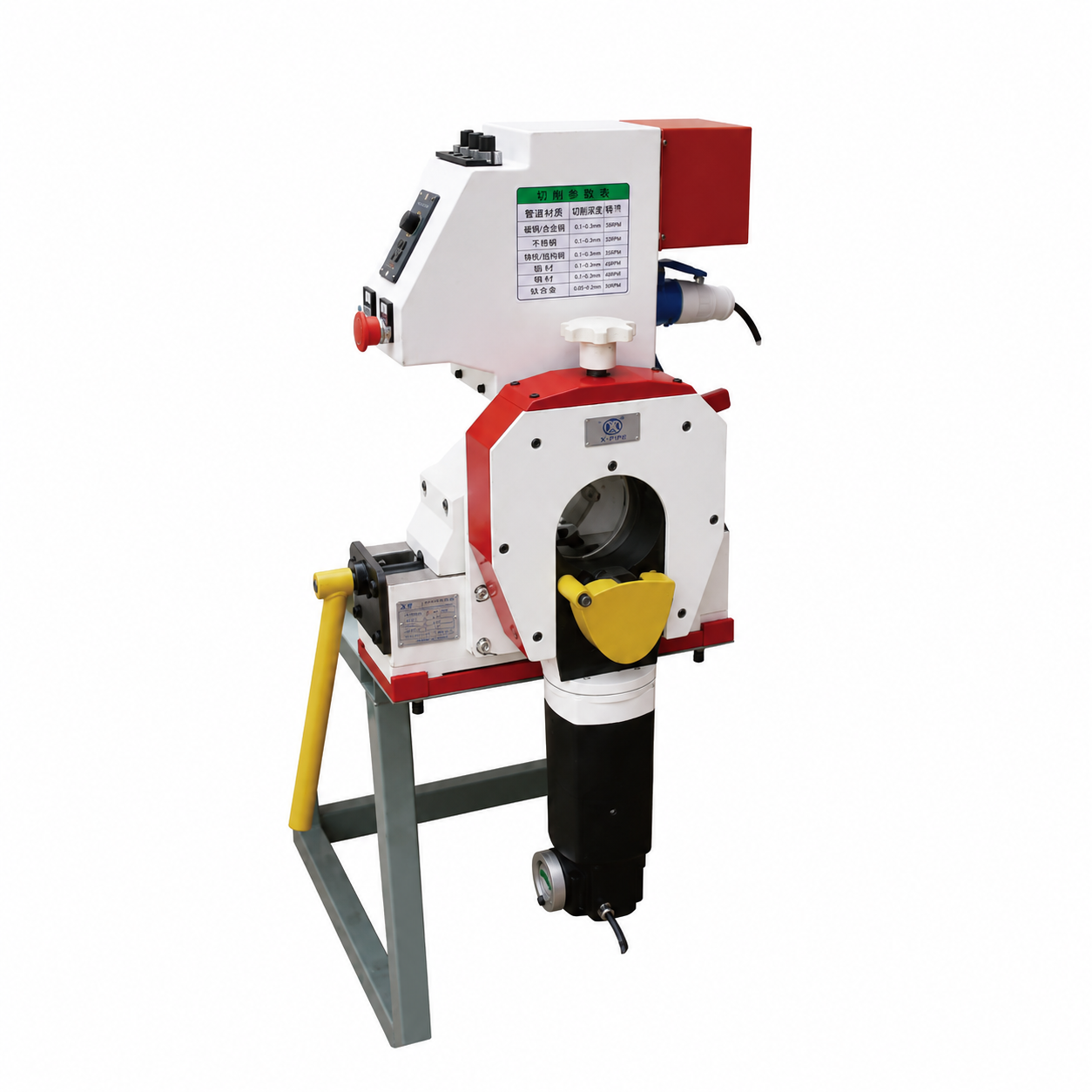

Orbital Electric Pipe Cutting Machine
Orbital Electric Pipe Cutting Machine

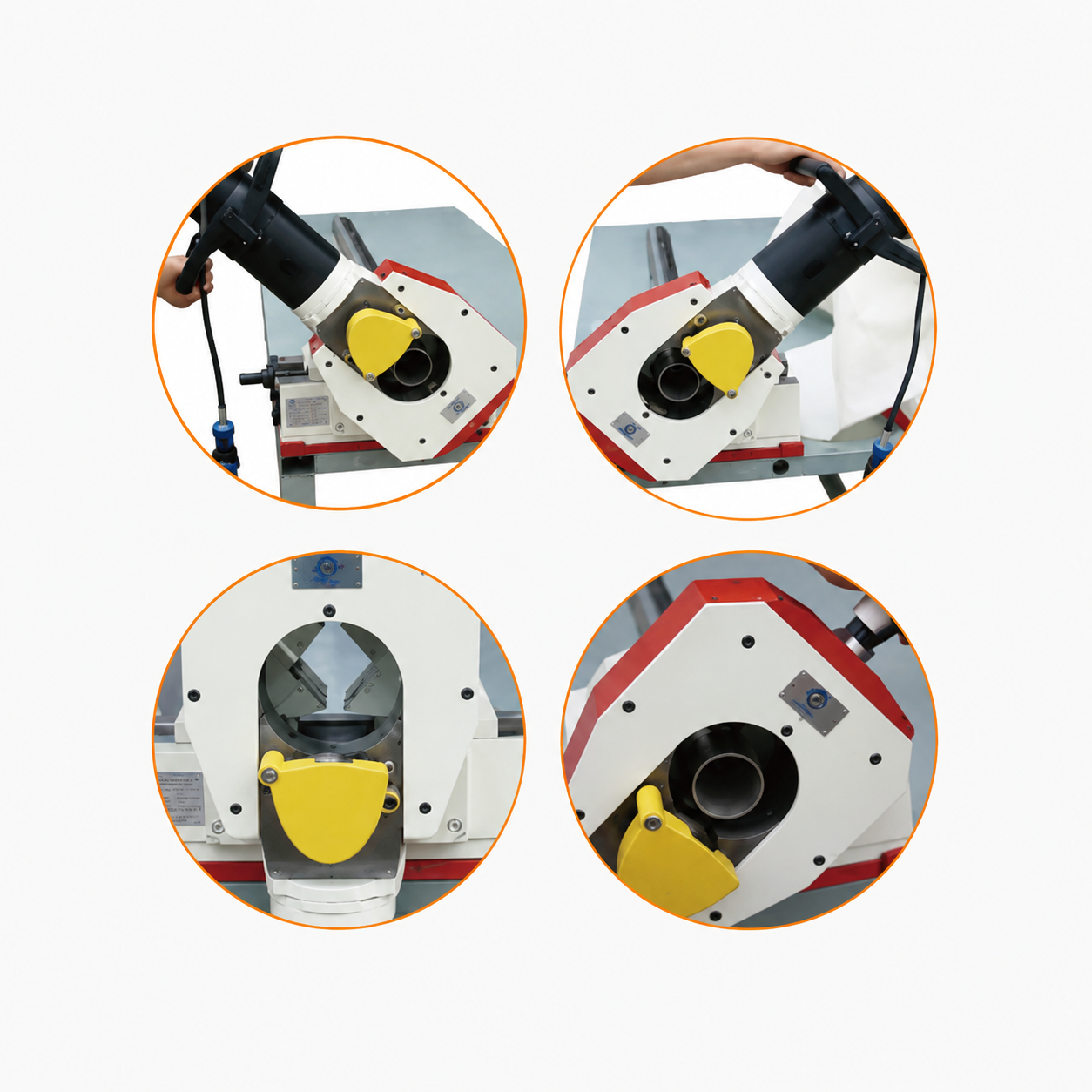

The orbital electric pipe cutting machine is mainly used for cutting industrial pipelines, clean pipelines and precision pipe fittings, as well as pipe end preparation before welding. The machine is driven by an electric motor. During cutting, the pipe is fixed in a self-centering clamping device, and the cutting head rotates around the pipe to complete the cut. Compared with manual cutting or abrasive wheel cutting, orbital cutting helps reduce pipe deformation, improve cut squareness and support better welding assembly quality.
This series is suitable for stainless steel, carbon steel, alloy steel, non-ferrous metal pipes and plastic pipes. Different models, blade speeds and feed speeds can be selected according to pipe diameter, wall thickness and material. The machine supports manual or automatic feed depending on configuration. It is easy to operate, compact in structure and suitable for workshop prefabrication, on-site installation, clean pipeline construction and automatic welding preparation.
The orbital electric pipe cutting machine is widely used in semiconductor, electronics, pharmaceutical, biotechnology, food and beverage, dairy, pressure vessel, petroleum, natural gas, chemical, aerospace, shipbuilding, power construction, boiler and water treatment industries. For pipeline projects requiring a flat cut face, square end surface, reduced pipe deformation and stable welding preparation quality, this machine is a practical solution for precision pipe cutting and automatic welding preparation.

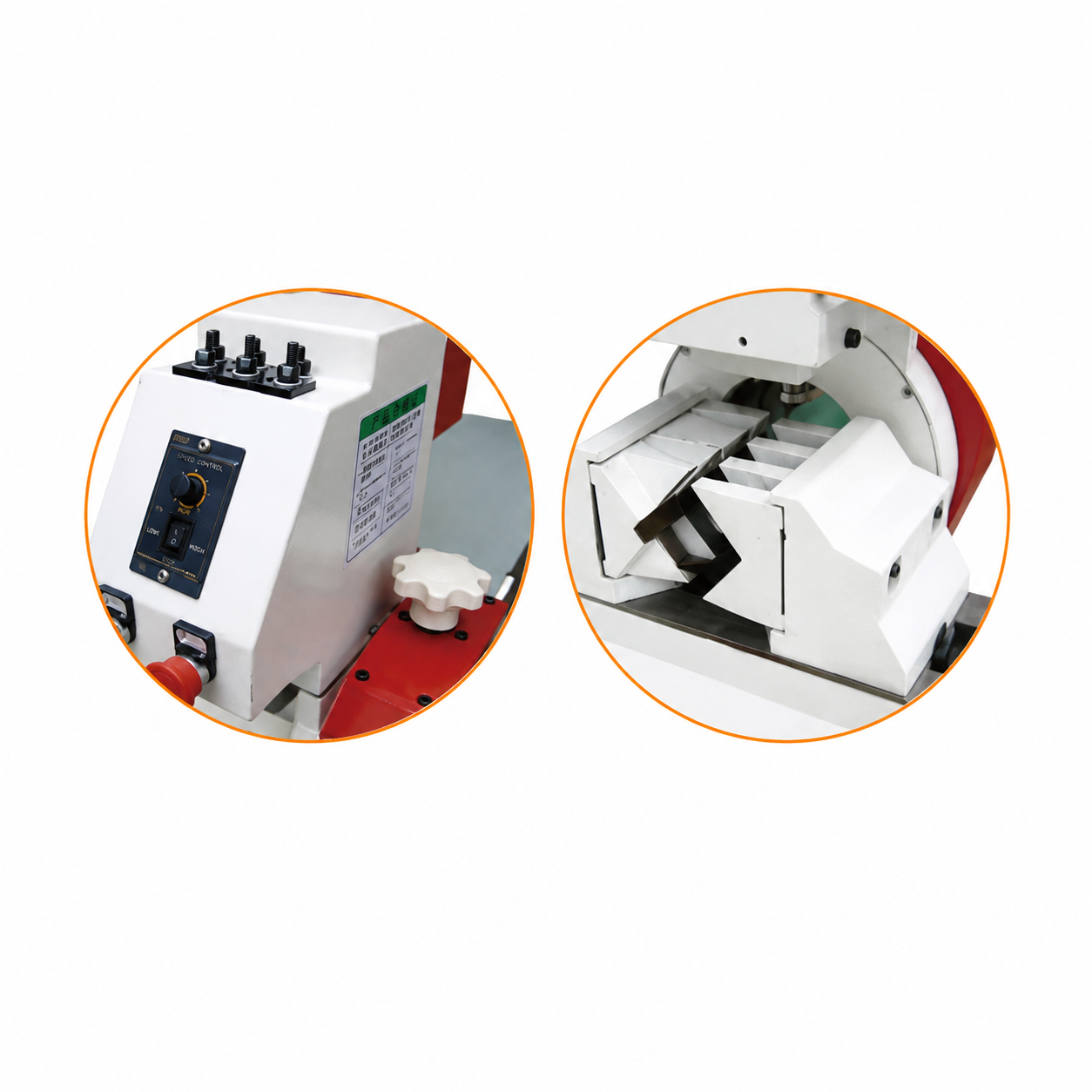

Suitable for precision cutting and welding preparation of small and medium pipes, especially stainless steel thin-wall pipes and clean pipelines. Orbital cutting design allows the cutting head to rotate around the pipe while the pipe remains fixed. Self-centering clamping structure helps secure the pipe quickly and reduce pipe deformation. Produces a square cut face with fewer burrs, suitable for automatic welding and pipe assembly. Adjustable motor speed allows users to select the proper speed according to pipe material, wall thickness and cutting requirements. Cutting blades or beveling blades can be selected for pipe cutting, end facing and small bevel preparation. Used in semiconductor, electronics, pharmaceutical, food and beverage, dairy, biotechnology, pressure vessel, petrochemical, natural gas, boiler, shipbuilding, power construction and water treatment industries.
Technical specifications (reference)
| Item | Description |
|---|---|
| Product Name | Orbital Electric Pipe Cutting Machine |
| Processing Method | Orbital rotary cutting; pipe fixed, blade rotates around the pipe |
| Work Conditions | Pipe cutting, end facing, welding preparation and small beveling |
| Applicable Materials | Stainless steel, carbon steel, alloy steel, non-ferrous metal and plastic pipes |
| Drive Mode | Electric motor drive |
| Feed Mode | Manual or automatic feed depending on configuration |
| Typical Applications | Clean pipeline fabrication, automatic welding preparation, industrial pipeline installation, workshop prefabrication |
| XJPE-2(R2) | Applicable pipe diameter 19–120mm / 1/2"–4"; applicable wall thickness 0.5–3mm; motor 1100W; blade speed 30–150rpm; voltage/frequency 110/220V 50/60Hz; weight 25kg |
| XJPE-4(R4) | Applicable pipe diameter 19–120mm / 1/2"–4"; applicable wall thickness 1–7mm / 0.04"–0.22"; motor 1800W; blade speed 150–250rpm; voltage/frequency 110/220V 50/60Hz; weight 90kg |
| XJPE(R6) | Applicable pipe diameter 80–180mm / 3"–6"; applicable wall thickness 2–10mm / 0.08"–0.4"; motor 1800W; blade speed 150–250rpm; voltage/frequency 110/220V 50/60Hz; weight 110kg |
| XJPE(R8) | Applicable pipe diameter 125–230mm / 6"–8"; applicable wall thickness 2–10mm / 0.08"–0.4"; motor 1800W; blade speed 150–250rpm; voltage/frequency 110/220V 50/60Hz; weight 130kg |
| XJPE(R12) | Applicable pipe diameter 200–325mm / 8"–12"; applicable wall thickness 2–10mm / 0.08"–0.4"; motor 1800W; blade speed 150–250rpm; voltage/frequency 110/220V 50/60Hz; weight 160kg |
| Plastic Pipe Cutting Reference | Wall thickness 1–10mm; blade speed 230–250r/min; feed speed 15–18mm/s; applicable blade: same as carbon steel blade |
| Carbon Steel / Structural Carbon Steel / Alloy Steel / Tool Steel / Bearing Steel / Non-Ferrous Metal Cutting Reference | Wall thickness 1–1.5mm; blade speed 210r/min; feed speed 7–8mm/s; applicable blade HSS-63100 |
| Stainless Steel / Alloy Steel Cutting Reference 1 | Wall thickness 1.5–2.5mm; blade speed 190r/min; feed speed 5–6mm/s; applicable blade HSS-6872 |
| Stainless Steel / Alloy Steel Cutting Reference 2 | Wall thickness 2.5–5mm; blade speed 170r/min; feed speed 2–3mm/s; applicable blade HSS-6844 |
| Stainless Steel / Alloy Steel Cutting Reference 3 | Wall thickness 5–10mm; blade speed 150r/min; feed speed 1.5–2mm/s; applicable blade HSS-7838 |
The specific values shall be subject to the factory technical agreement and quotation sheet.
Typical applications
Semiconductor clean pipeline cutting and welding preparation.
Stainless steel pipe cutting for pharmaceutical, biotechnology, food and beverage, and dairy industries.
Pipe end preparation for pressure vessels, boilers, petrochemical and natural gas pipelines.
Shipbuilding, power construction, water treatment and industrial pipeline installation.
Square pipe cutting, end facing and small beveling before automatic welding.
