Medium Plate Beveling - X-20 Series

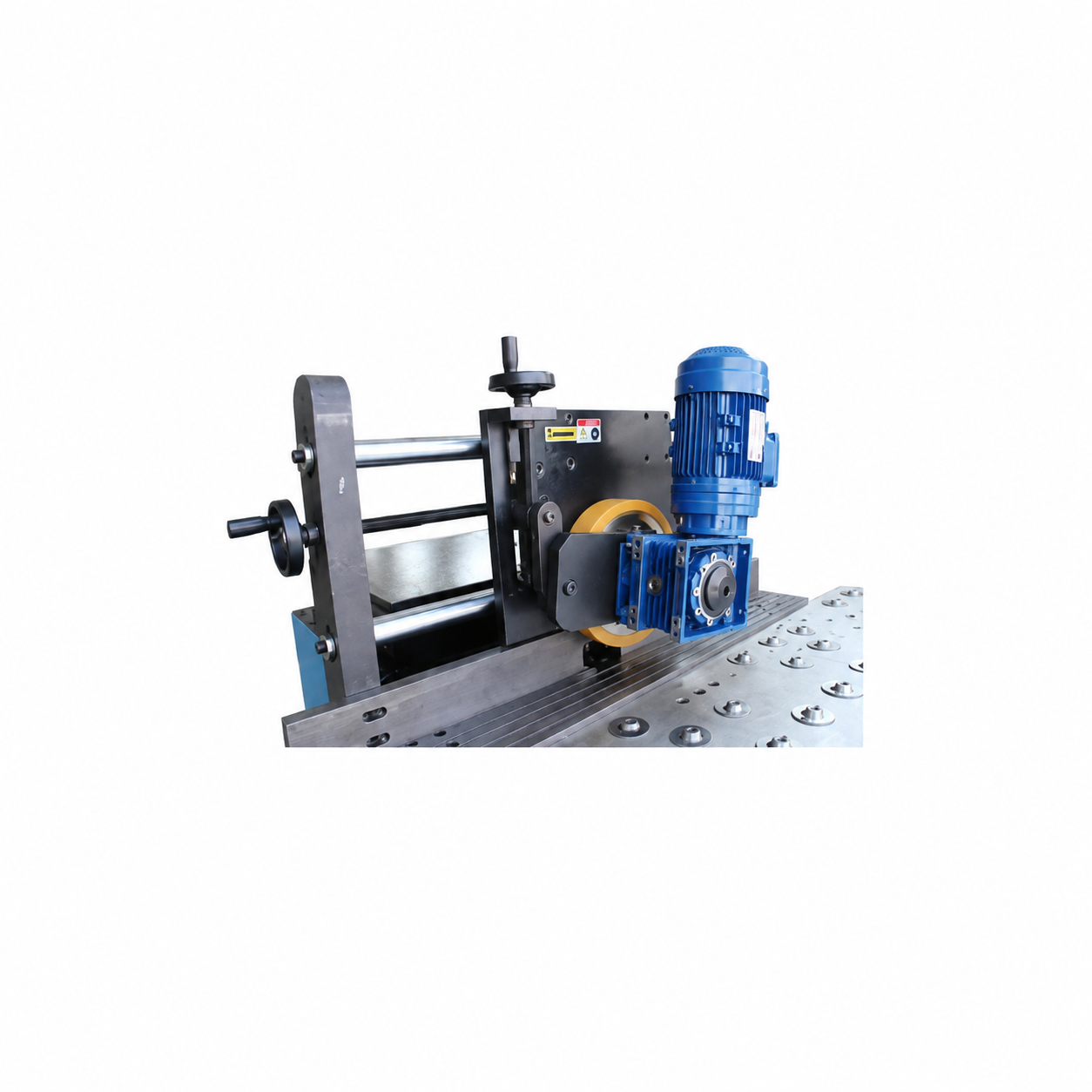

X-20 Self-Propelled Plate Beveling Machine
The X-20 self-propelled plate beveling machine is used for edge chamfering, beveling and welding preparation on medium-thick metal plates. It is suitable for carbon steel, stainless steel, alloy steel and other metal materials, especially for steel plates, structural parts, mechanical components and batch plate processing.
Compared with compact models such as X-10 and X-15, the X-20 provides stronger cutting power, a wider plate thickness range and a more stable worktable support structure. It is suitable for continuous beveling of plates from 3mm to 60mm. The machine moves automatically along the plate edge, helping improve processing stability, reduce manual grinding and increase bevel consistency.
The X-20 Series is widely used in steel fabrication, machinery manufacturing, pressure vessel supporting fabrication, metal workshops, equipment manufacturing and welding preparation. It is a practical workshop-type beveling solution for users who need continuous medium-thick plate processing and stable bevel quality.
Suitable for edge chamfering, beveling and welding preparation of medium-thick metal plates. Equipped with 4000W cutting power and 450W travel motor for stable continuous beveling. Supports plate thickness from 3mm to 60mm, covering thicker workpieces than compact models. Adjustable bevel angle from 30° to 60° for common welding preparation and edge chamfering needs. Larger worktable provides better support for long plates, batch processing and workshop production. Helps reduce manual grinding, repeated edge finishing and bevel inconsistency.
Technical specifications (reference)
| Item | Description |
|---|---|
| Power Supply | AC 380V 50Hz |
| Cutting Power | 4000W |
| Travel Motor Power | 450W |
| Spindle Speed | 0–1050 r/min |
| Feed Speed | 0–1500 mm/min |
| Clamping Plate Thickness | 3–60 mm |
| Clamping Plate Width | ≥60 mm |
| Processing Plate Length | ≥150 mm |
| Bevel Angle | 30°–60° Adjustable |
| Single-Pass Bevel Width | 0–15 mm |
| Bevel Edge Width | 0–25 mm |
| Cutter Disc Diameter | Φ80 mm |
| Number of Inserts | 6 |
| Worktable Height | 900–1000 mm |
| Worktable Size | 1200 × 550 mm |
| Travel Space | 1050 × 1200 mm |
| Net Weight | 450 kg |
| Gross Weight | 495 kg |
| Packing Size | 1800 × 1800 × 1600 mm |
The specific values shall be subject to the factory technical agreement and quotation sheet.
Typical applications
Medium-thick plate welding preparation.
Batch edge processing in metal fabrication workshops.
Steel structure and machinery manufacturing.
Supporting fabrication for pressure vessels and equipment manufacturing.
Replacing manual grinding for more consistent bevel quality.
